EUROSIX Spaced Sheeting

Efficient ventilation is important in any livestock building as it supports animal welfare by reducing moisture levels which can carry bacteria and disease.
The Spaced Sheeting Ventilation System is specifically designed for livestock buildings, providing efficient natural ventilation.

EUROSIX spaced sheeting is available in the full range of sheet lengths and colours.

Colours
Available



All of our EUROSIX spaced fibre cement sheets are stocked in all of our Standard Colour Range options.



Standard Colour Range

Colour options help new buildings fit seamlessly with the landscape and assist with planning approvals.

Natural Grey
Meadowscape
Juniper Green
Van Dyke Brown
Slate Blue
Moorland Green
Beaver Brown

Technical
data





EUROSIX Spaced Sheets Technical Specifications

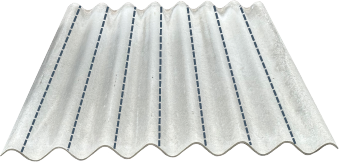

EUROSIX Reinforcement Strips

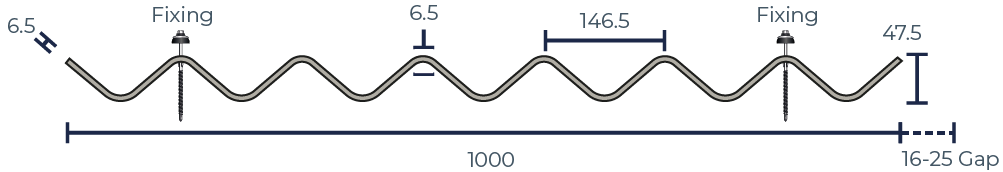

EUROSIX Spaced Sheets Diagram

EUROSIX is a strong fibre cement sheet reinforced with polypropylene strips that are placed in strategic locations along the entire length of the sheet. This provides maximum impact strength without sacrificing the product's appearance, durability, or practicality.

EUROSIX SPACED SHEET LENGTHS & WEIGHTS

Metric (mm) Imperial (ft & in) Dry weight (kg)
1525 mm 5' 22.80
1675 mm 5' 6 25.05
1825 mm 6' 27.45
1975 mm 6' 6 30.00
2125 mm 7' 31.95
2275 mm 7' 6 36.60
2440 mm 8' 37.31
2600 mm 8' 6 39.00
2740 mm 9' 41.40
2900 mm 9' 6 43.50
3050 mm 10' 45.75



TECHNICAL DATA

Overall width 1000 mm
Cover width 1000 mm
Thickness 6.5 mm
Corrugation pitch 146.5 mm
Depth of profile 47.6 mm
Minimum end lap 150 mm
Minimum roof pitch 5°
Maximum unsupported overhang 350 mm
Standard colour Natural grey
Class C1X
Maximum purlin centres 1375 mm
Maximum rail centres 1825 mm
Approx weight when installed 17kg/m2
Gap between sheets 16-25 mm



Advantages

PROMOTES VENTILATION

Absorbs condensation which can carry harmful bacteria and promotes fresh air within a livestock building

6 INCH PROFILE

Traditional UK profile matches appearance of existing buildings and can be used on refurbishments without changing purlin positions

DURABILITY

Resistant to rust and rot, providing a long life durable roofing option with a 30 year guarantee and 10 year colour guarantee

INSULATION

Natural thermal properties and sound insulation offering protection against more extreme weather conditions

COLOUR OPTIONS

Colour options to help new buildings fit seamlessly with the landscape and assist with planning approvals

Delivered direct-to-site when you want it; where you want it.

Utilising our own in-house transport network which we have invested heavily into with a fleet of over 20+ specialist vehicles, we can deliver any sized order within 3-5 working days. If you do not want your fibre cement order so soon, you can also choose when you want it to be delivered and we will make it happen.
