Ridges

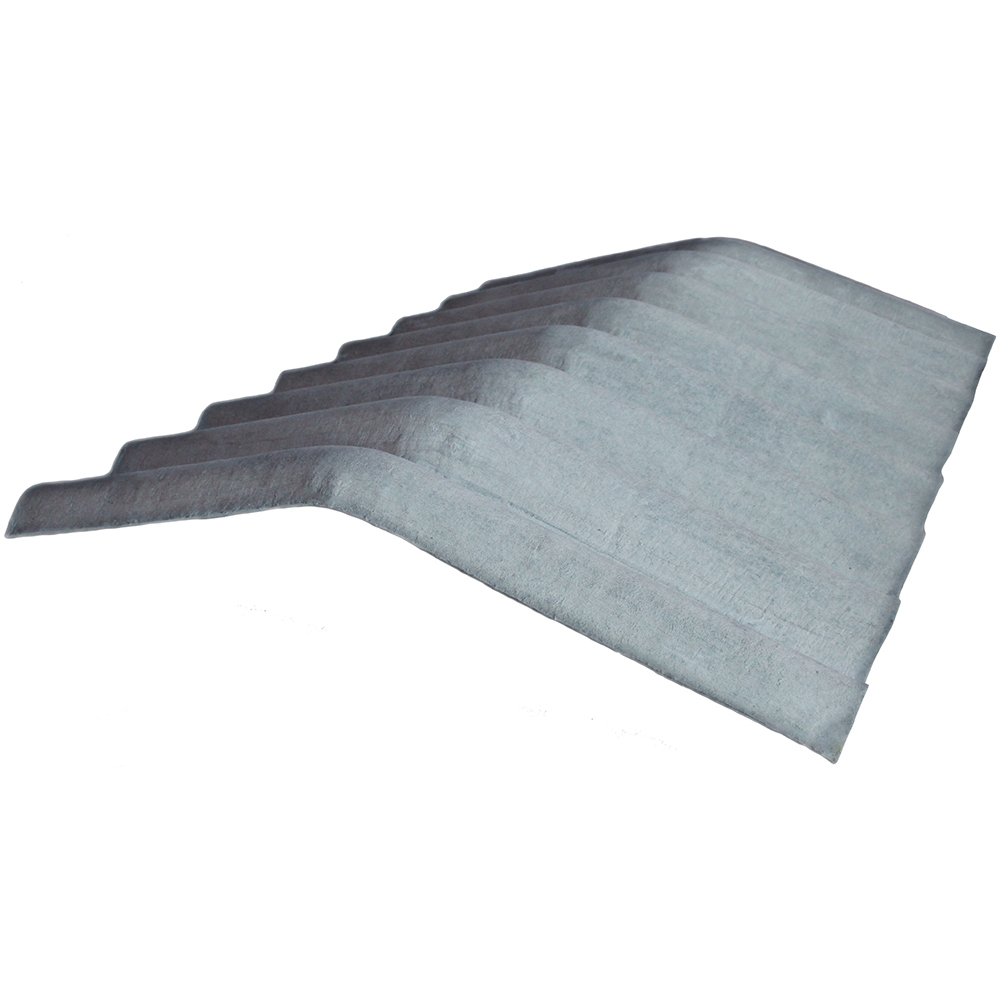

Close Fitting Ridge

Available in 750mm Girth
To suit roof pitches: 12.5 & 15 Degrees only
Available in 900mm Girth
To suit roof pitches: 5, 7.5, 10, 12.5, 15, 17.5, 20, 22.5 Degrees
Available in 1800mm* Girth
To suit roof pitches: 10, 12.5, 15, 17.5, 22.5 Degrees
* 1800mm Fragile – Further reinforcement is required under the ridge to conform to HSG33

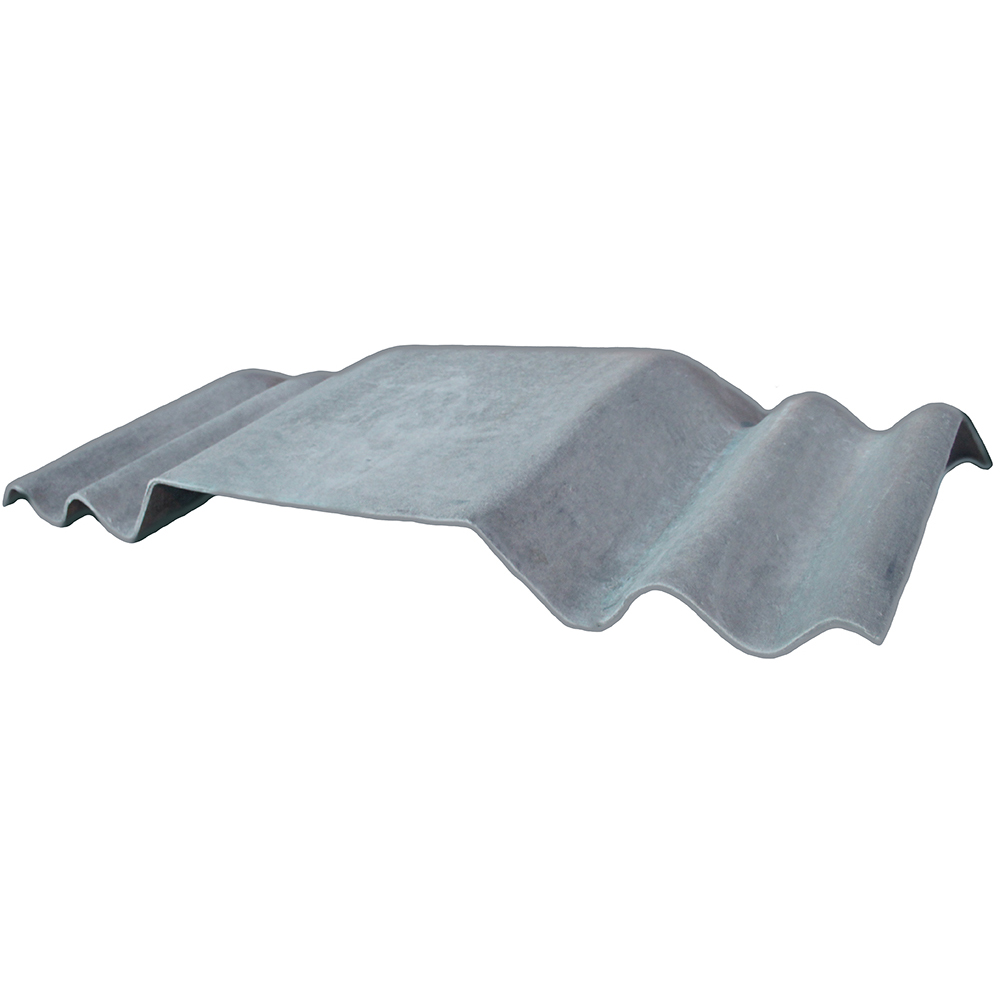

Ventilation Ridge

Available in 750mm Girth
To suit roof pitches: 12.5 & 15 Degrees only
Available in 900mm Girth
To suit roof pitches: 5, 7.5, 10, 12.5, 15, 17.5, 20, 22.5 Degrees
Available in 1800mm* Girth
To suit roof pitches: 10, 12.5, 15, 17.5, 22.5 Degrees
* 1800mm Fragile – Further reinforcement is required under the ridge to conform to HSG33

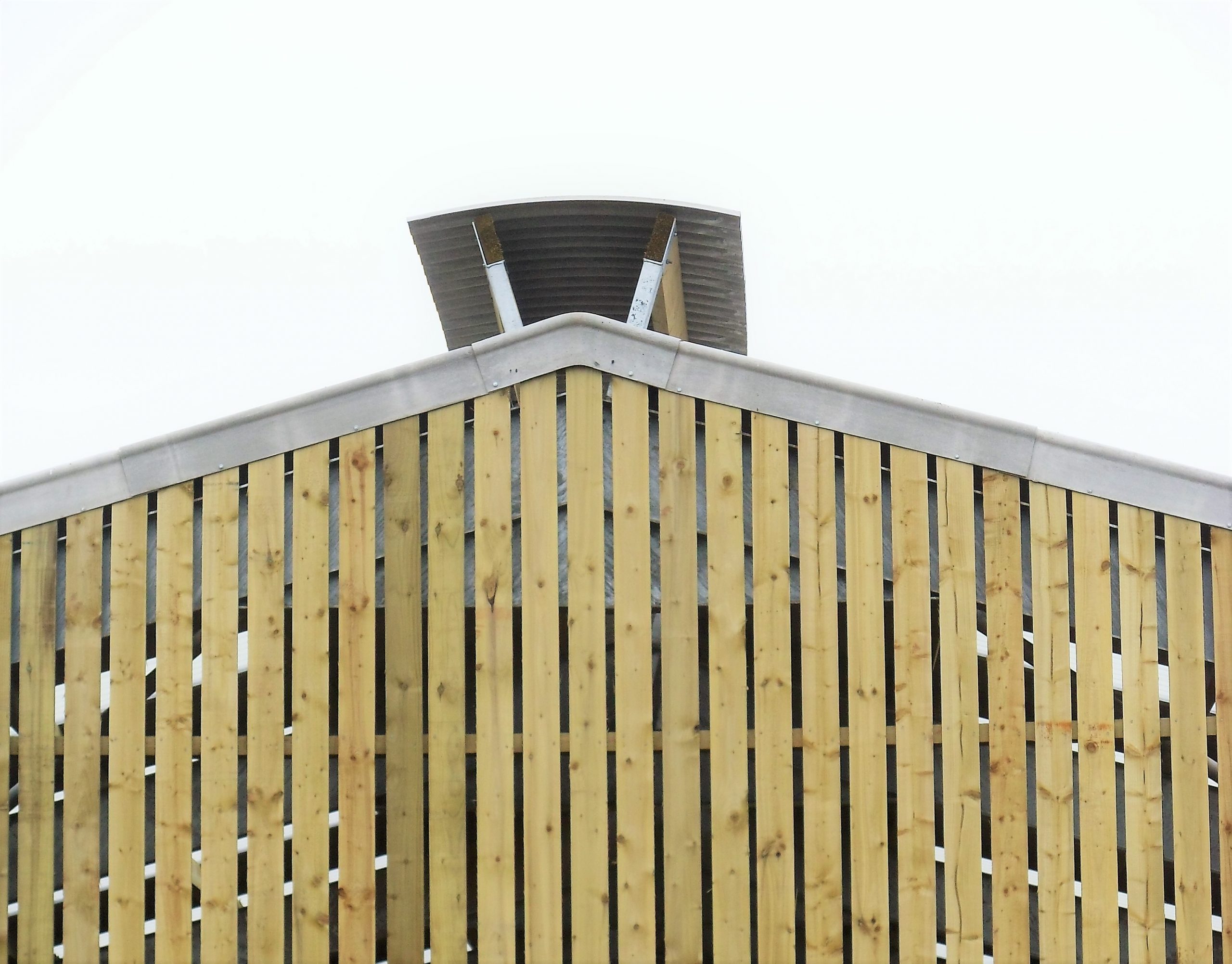

Raised Curved Ridge

Generally the curved ridge is raised approximately 450mm above the ridge line.
The reinforced 1400mm girth is curved and not cranked, but at around just 5 degrees gives effective protection from direct rainfall.

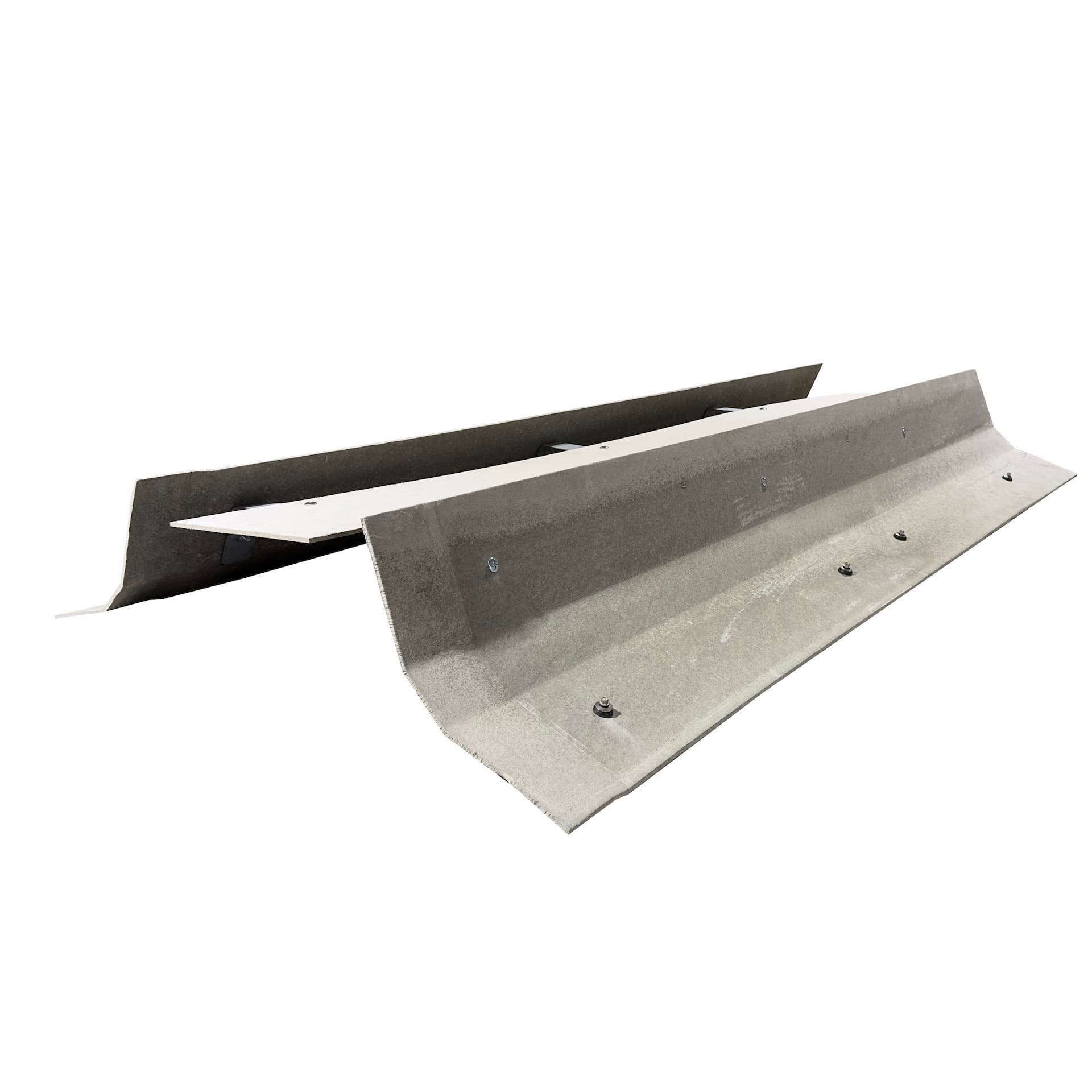

Open Protected Ridge

Suitable for roof pitches of 10 degrees to 22 .5 degrees.
To meet the requirements of HSG 33, the gap between the
purlins at the apex of the roof should be no more than 300 mm.
The ventilation gap is therefore limited to 250 mm.

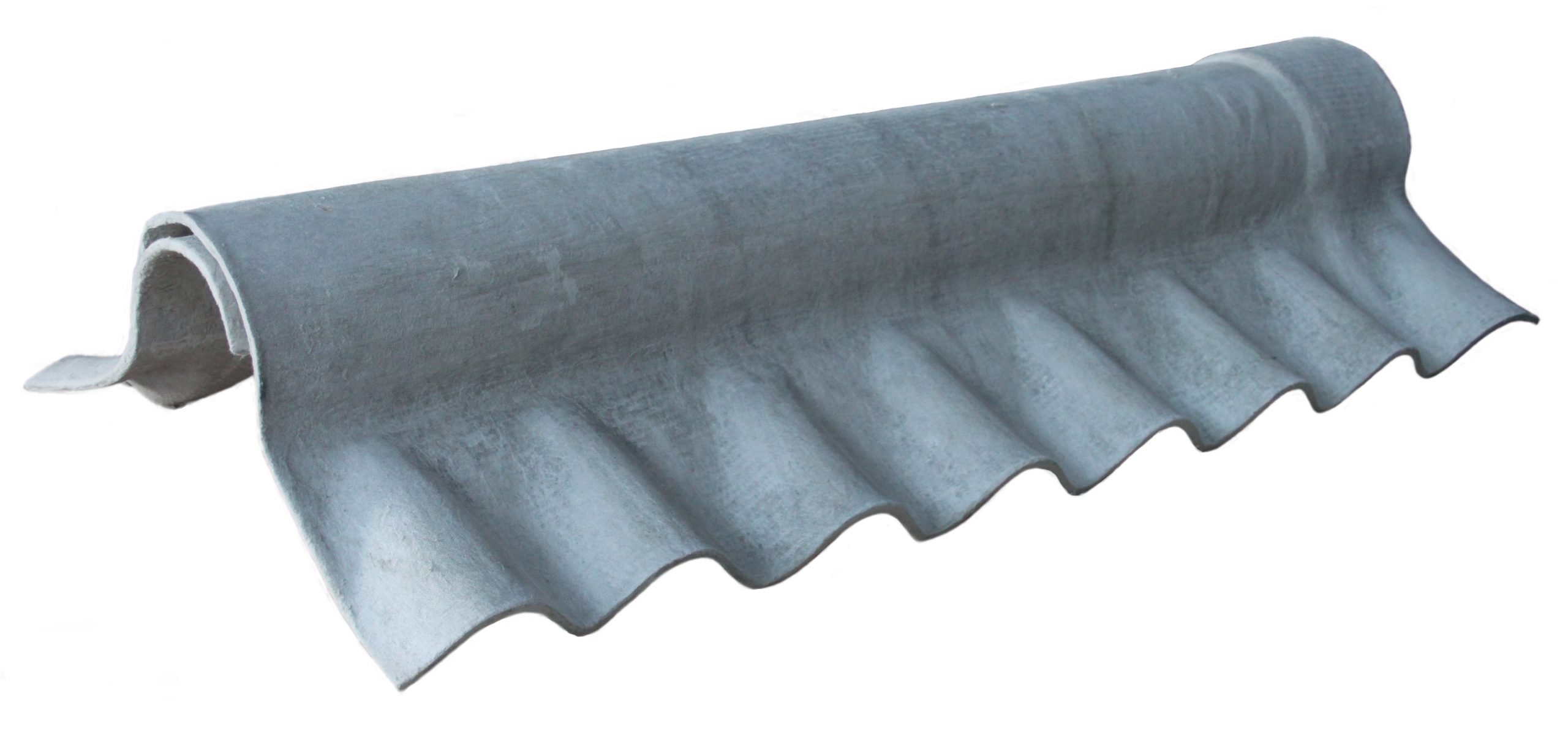

Two Piece Adjustable Ridges Close Fitting

These ridge fittings meet the requirements of HSG-33 Health and Safety Roof Work Manual.


Two piece adjustable ridges ventilated

Designed to provide ventilation to a maximum opening of 150mm

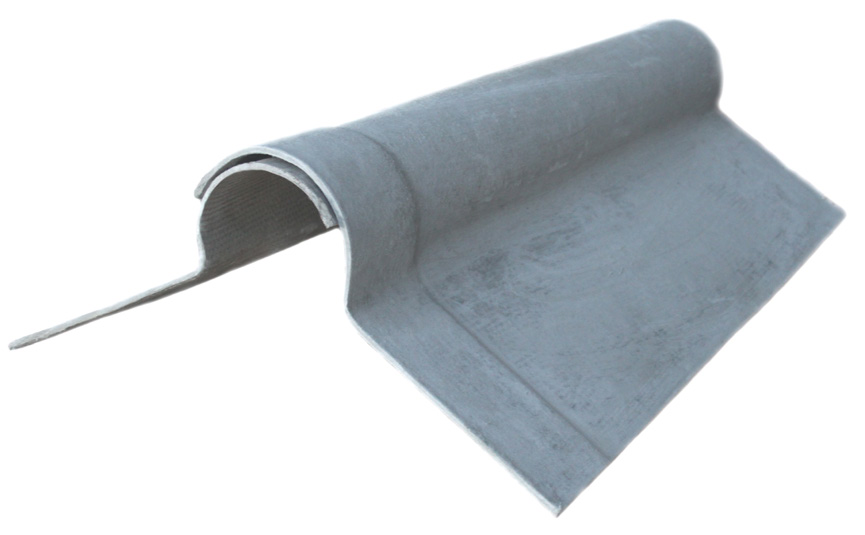

Two piece adjustable ridges plain wing

These ridge fittings meet the requirements of HSG-33 Health and Safety Roof Work Manual.


Barge Boards

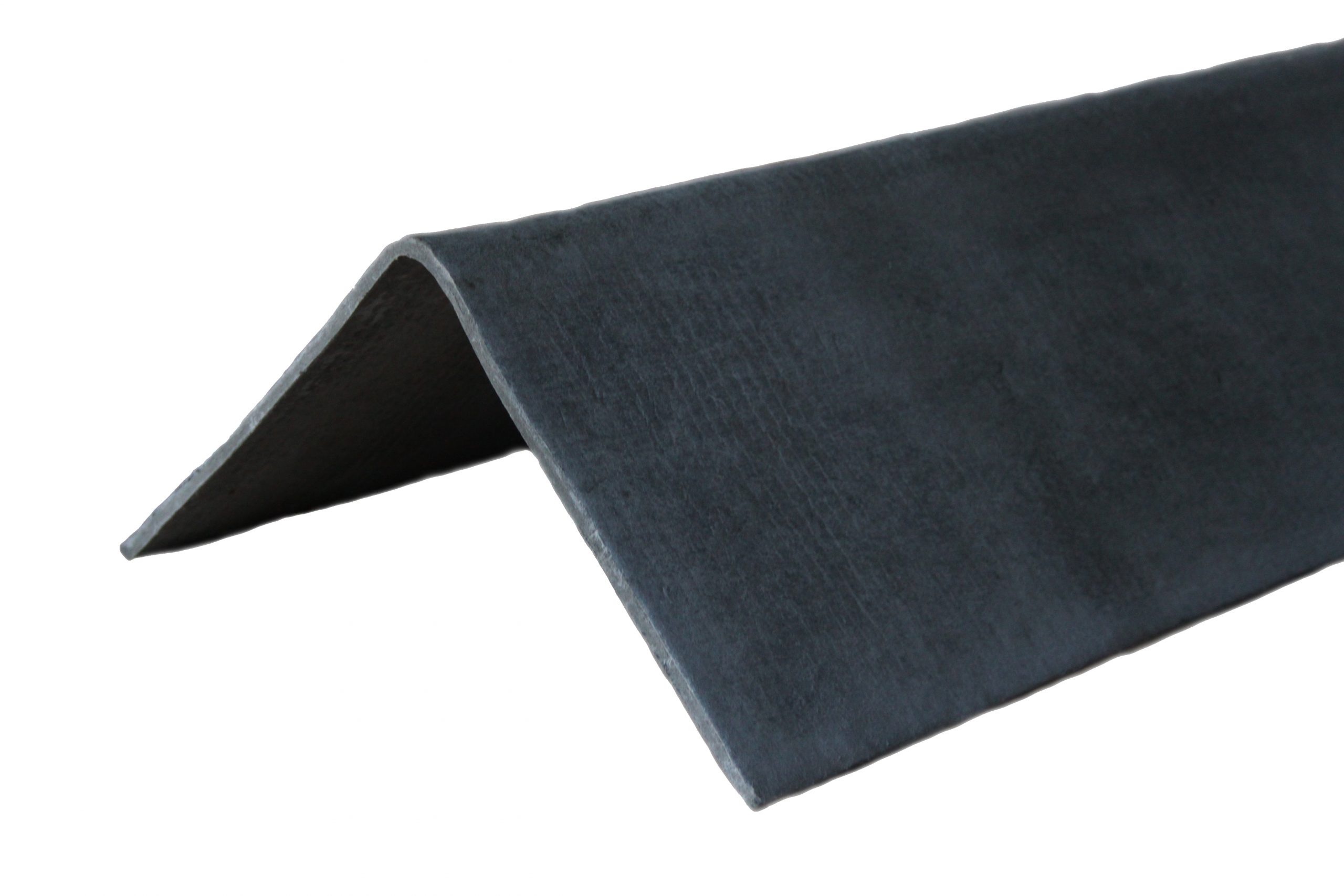

Plain wing barge board

Used to close the verge at gable ends and also vertical cladding

Lengths available: 1830mm, 2440mm or 3050mm
Wing options: 200x200mm or 300x300mm

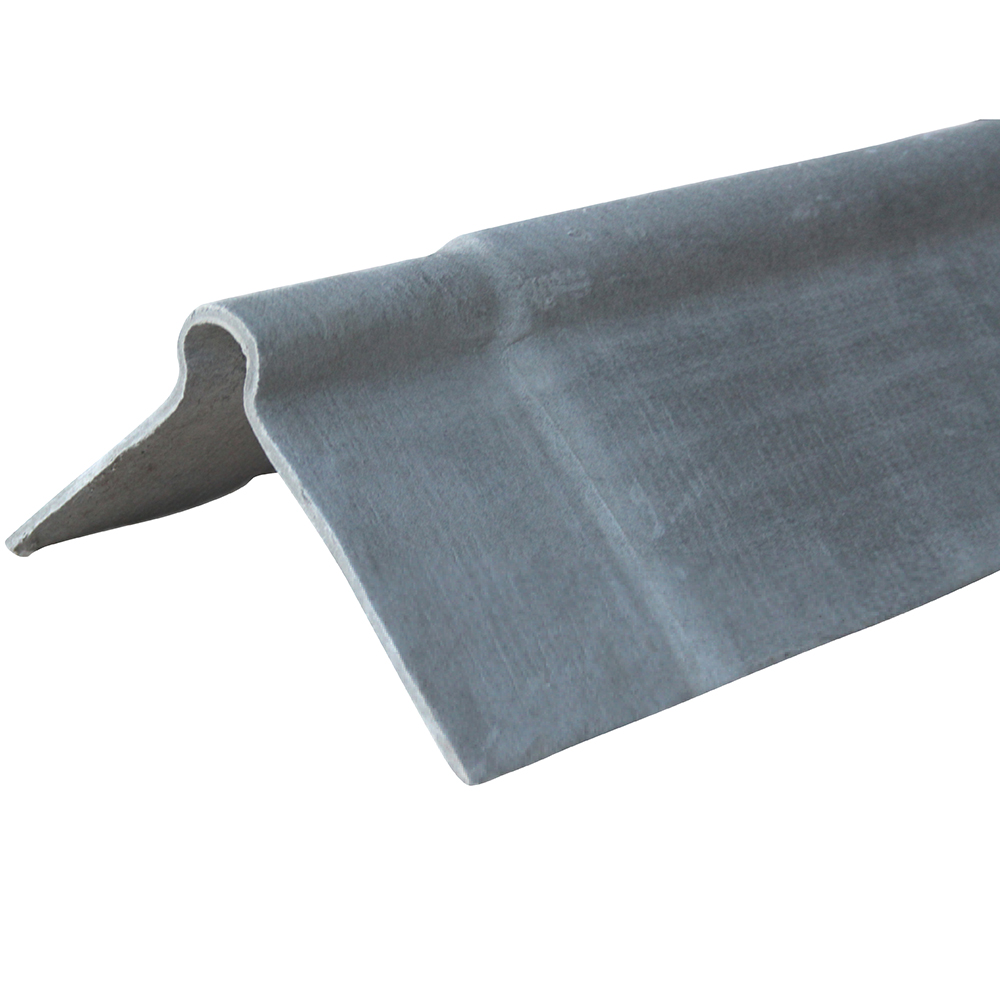

Roll top barge board

Used to close the verge at gable ends. Socket detail provides cover on overlap.
Lengths available: 1830mm, 2440mm or 3050mm
Wing: 200x200mm

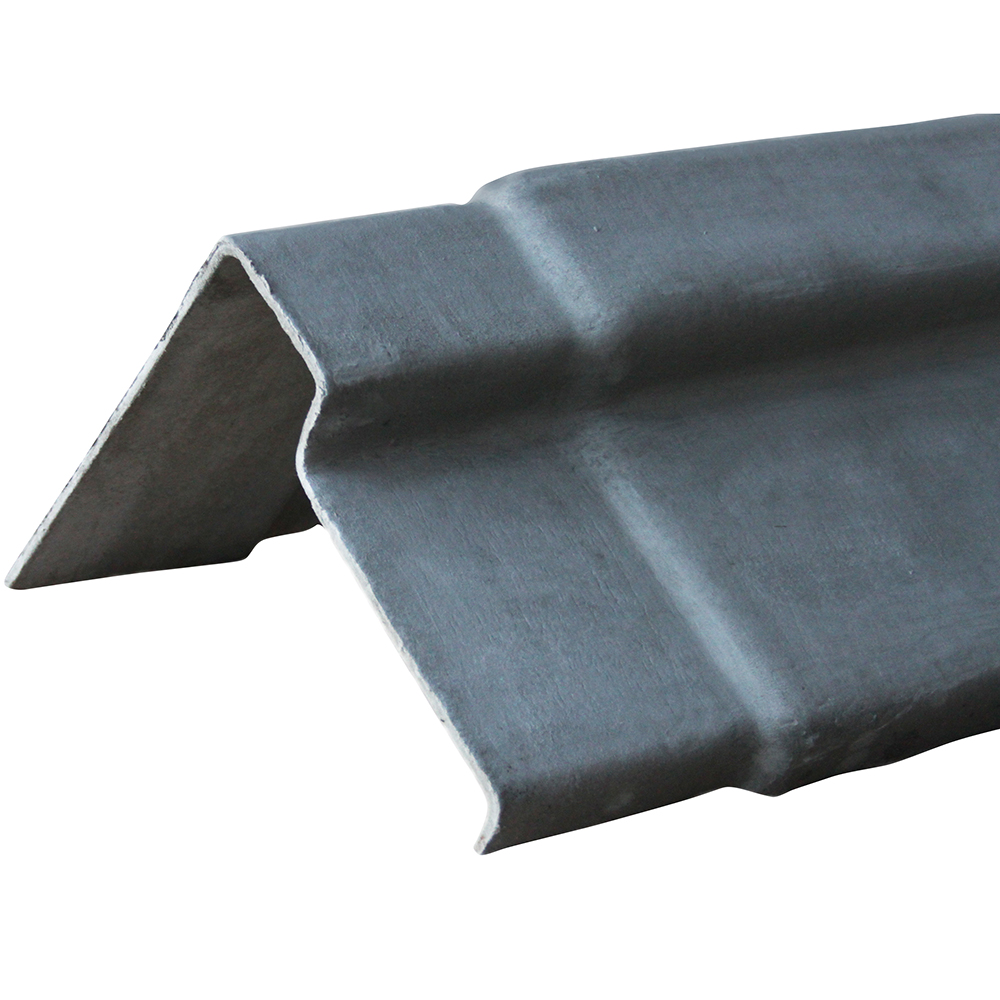

Vergeline barge board

Used to close the verge at gable ends
Lengths Available: 1830mm, 2440mm or 3050mm
Min Lap: 150mm
Socket detail provides cover on overlap
This fitment is handed, please state hand when ordering.
This image shows right hand piece.


Cranked Barge Boards

Plain wing cranked barge board

For use when a one piece ridge is fitted
(finials are required when 2 piece ridges are fixed)
Wing: 200x200mm Girths Available: 1300mm & 2200mm
Wing: 300x300mm Girth Available: 1300mm
To Suit Roof Pitches: 5, 7.5, 10, 12.5, 15, 17.5, 22.5 Degrees

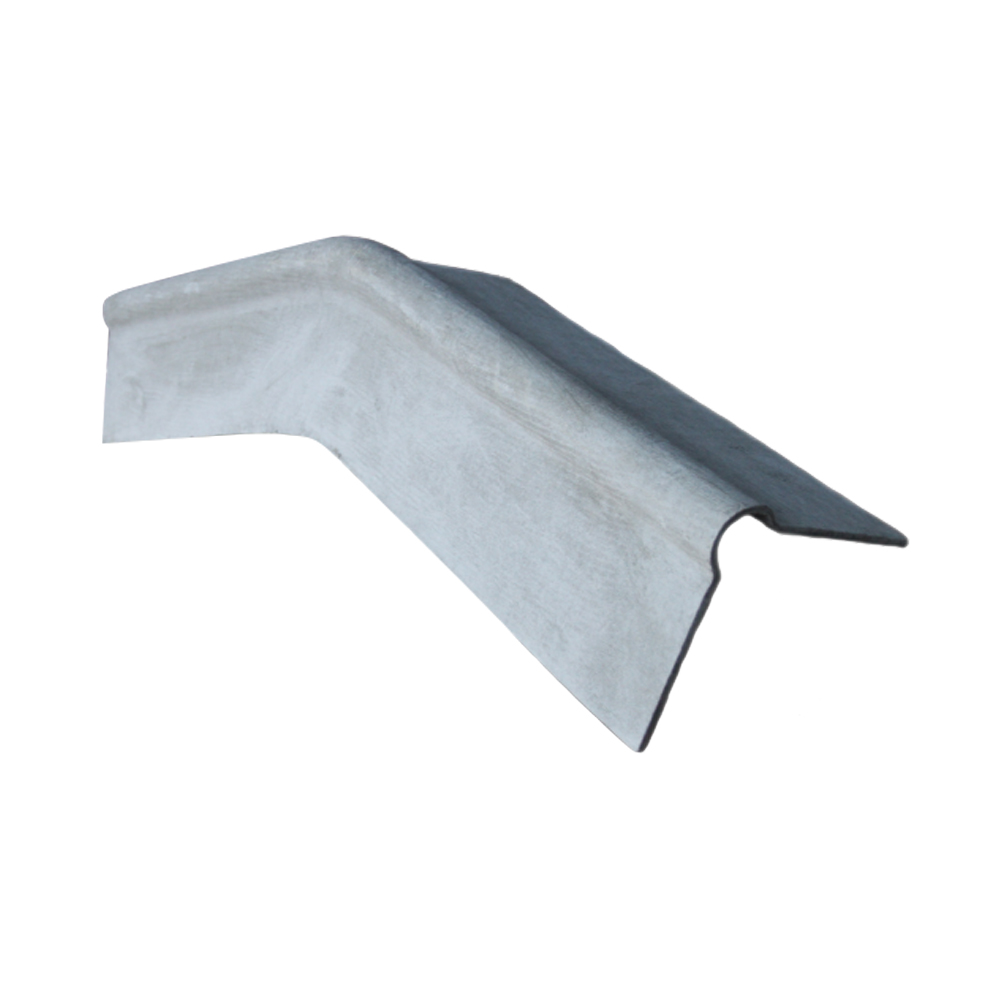

Roll top cranked barge board

For use when a one piece ridge is fitted
(finials are required when 2 piece ridges are fixed)
Wing: 200x200mm
Girths Available: 1300mm & 2200mm
To Suit Roof Pitches: 5, 7.5, 10, 12.5, 15, 17.5, 22.5 Degrees

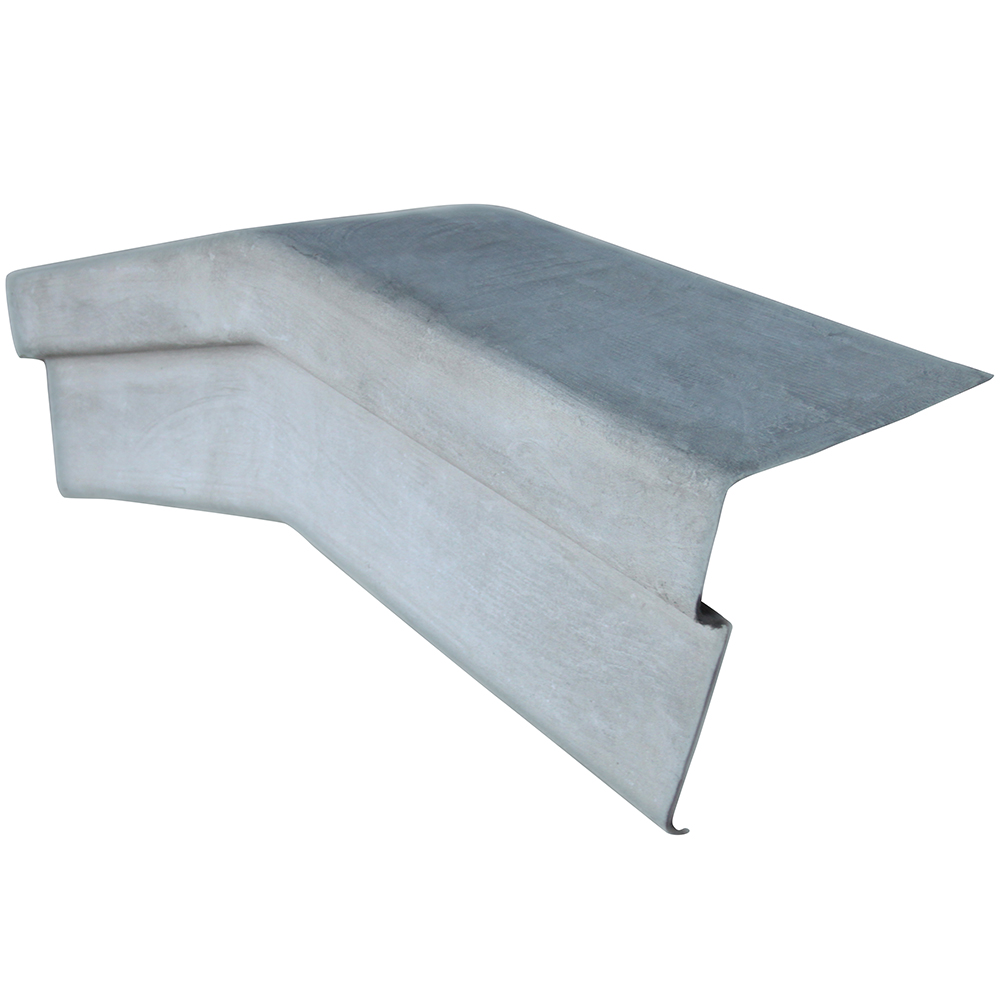

Vergeline cranked barge board

For use when a one piece ridge is fitted (finials are required when 2 piece ridges are fixed)
Girth: 1300mm
To Suit Roof Pitches: 10, 12.5, 15, 17.5, 22.5 Degrees


Eaves-Apron Accessories

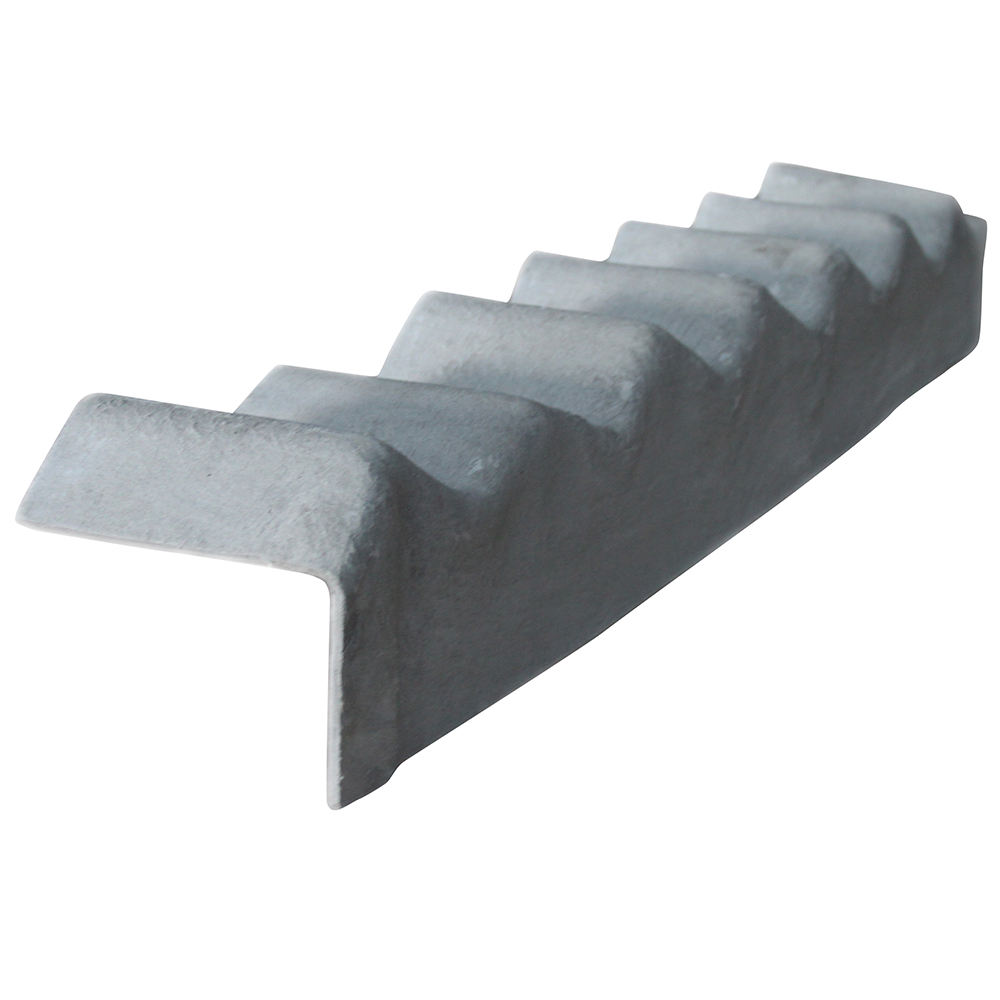

Eave closure

Closes the corrugation and/or insulated space at eaves detail and into gutter.
Net Cover: 1016mm

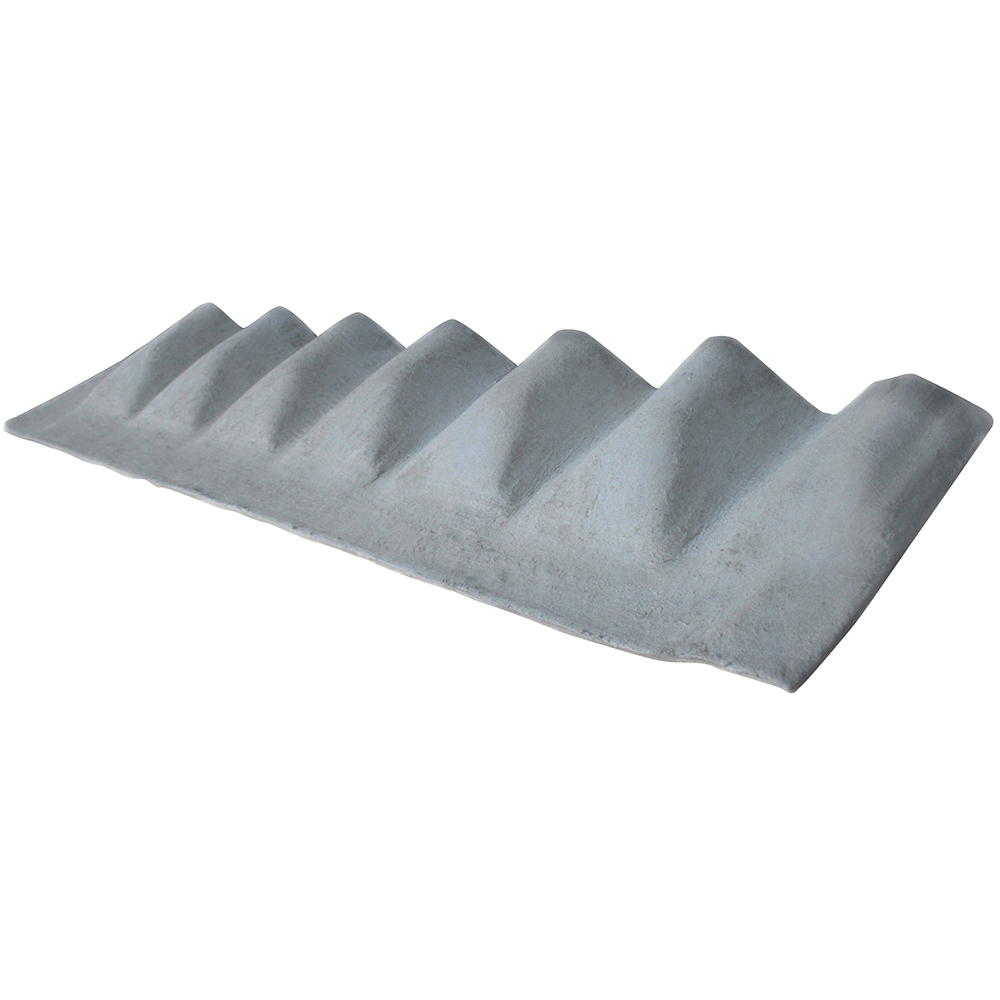

Eave filler

Closes corrugation at eaves of single skin cladding
Net Cover: 1016mm

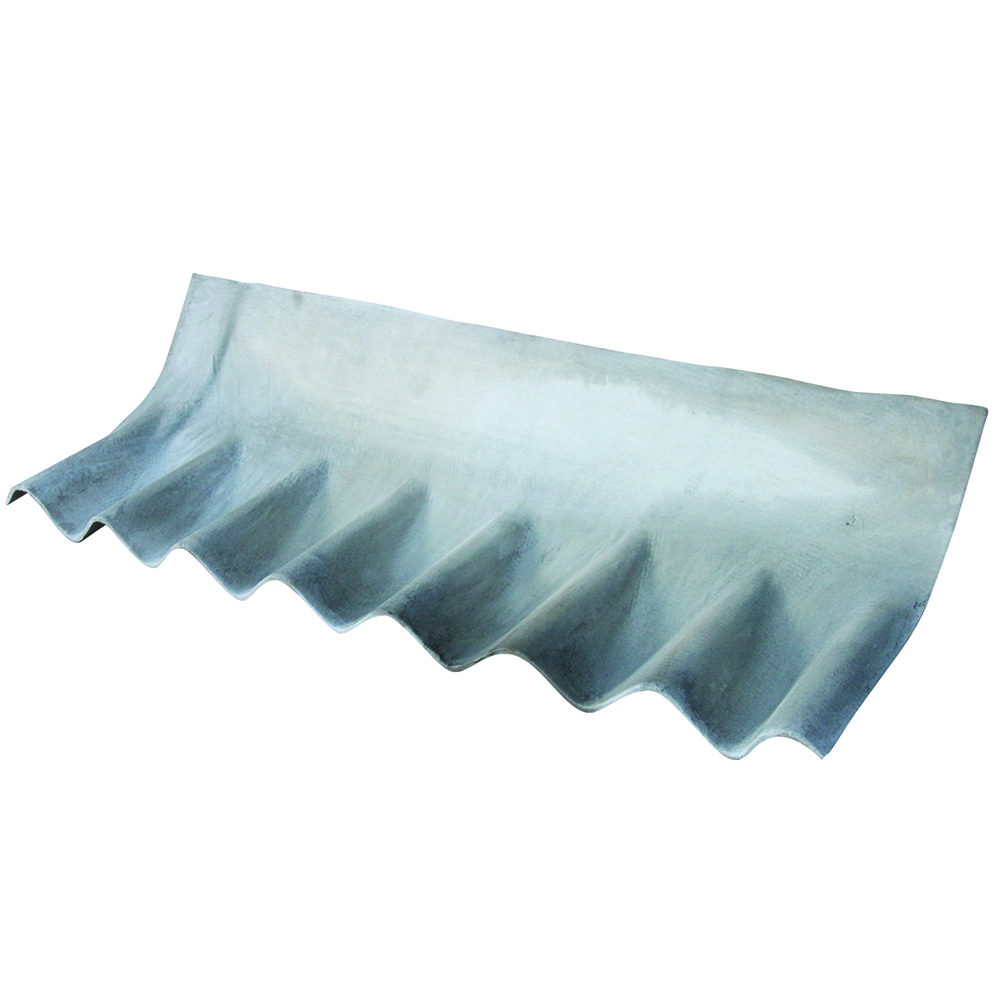

Apron flashing

Used at the junction detail where vertical and standard pitched roofs meet
Net Cover: 1016mm


Movement Joints

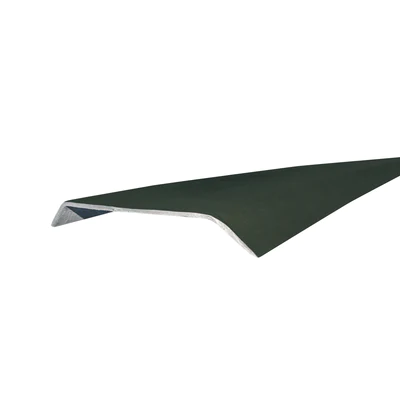

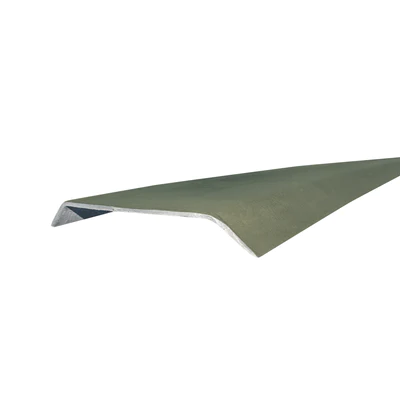

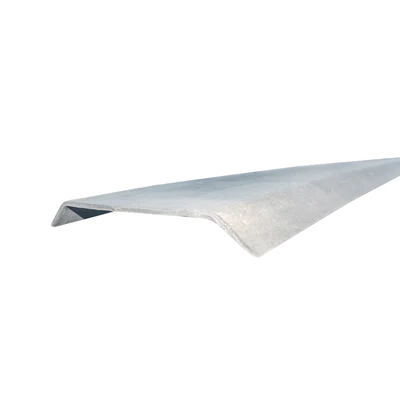

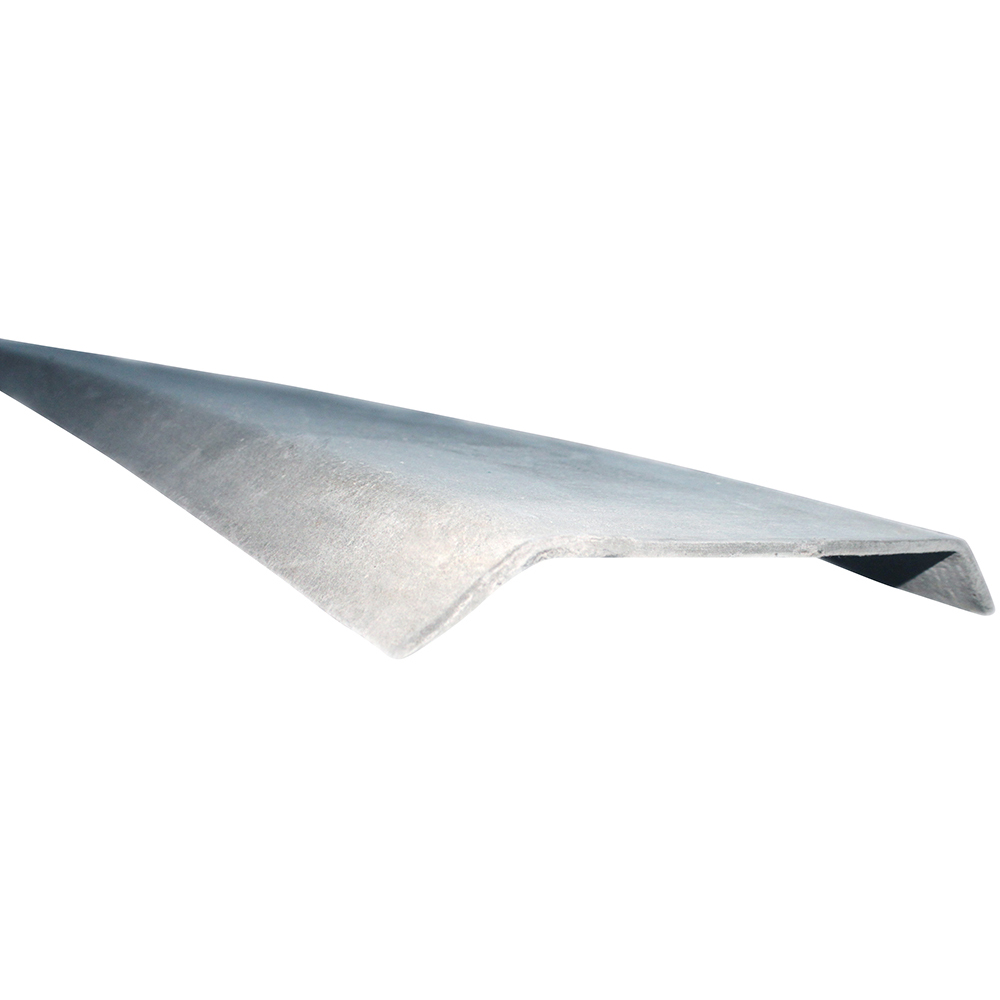

Movement Joint

Used to allow a movement and expansion break in larger buildings. Where a movement joint is required, the full EUROSIX sheet beneath it should be cut along the centre of its valley with a space of 25mm to 30mm. Recommended spacing for Movement Joints are:-

  • Buildings with a length of 45 metres or less do not need a Movement Joint.
  • Buildings with a length of 45 metres – 75 metres require one run of Movement Joints.
  • Another Movement Joint will be required every additional 30 metres.
  • Movement Joints require a minimum end lap of 150mm.
  • Movement Joints are fixed directly into purlins (not through sheets)
  • Fixings should go through the centre point of the Movement Joints at each Purlin position.

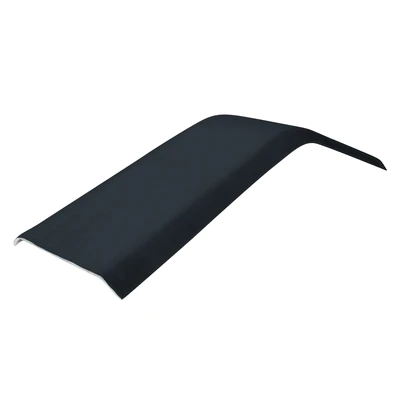

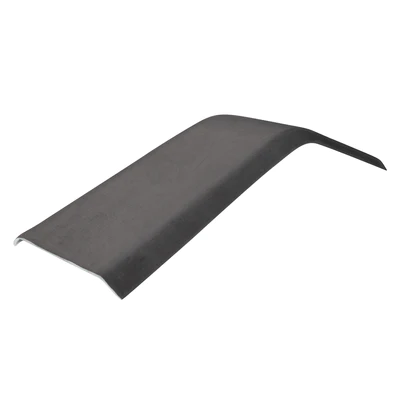

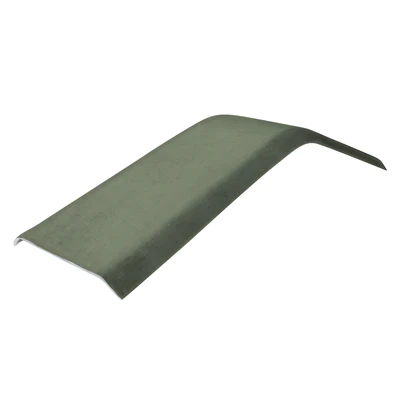

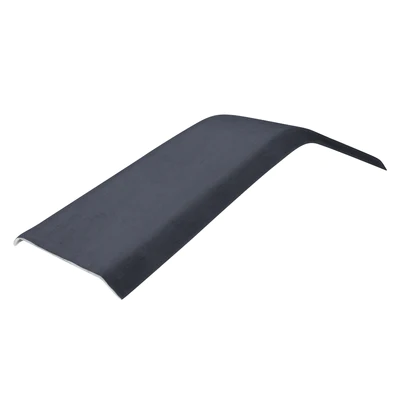

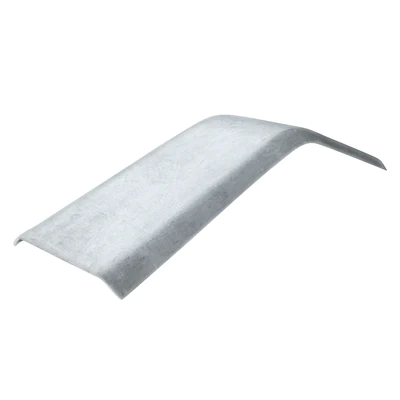

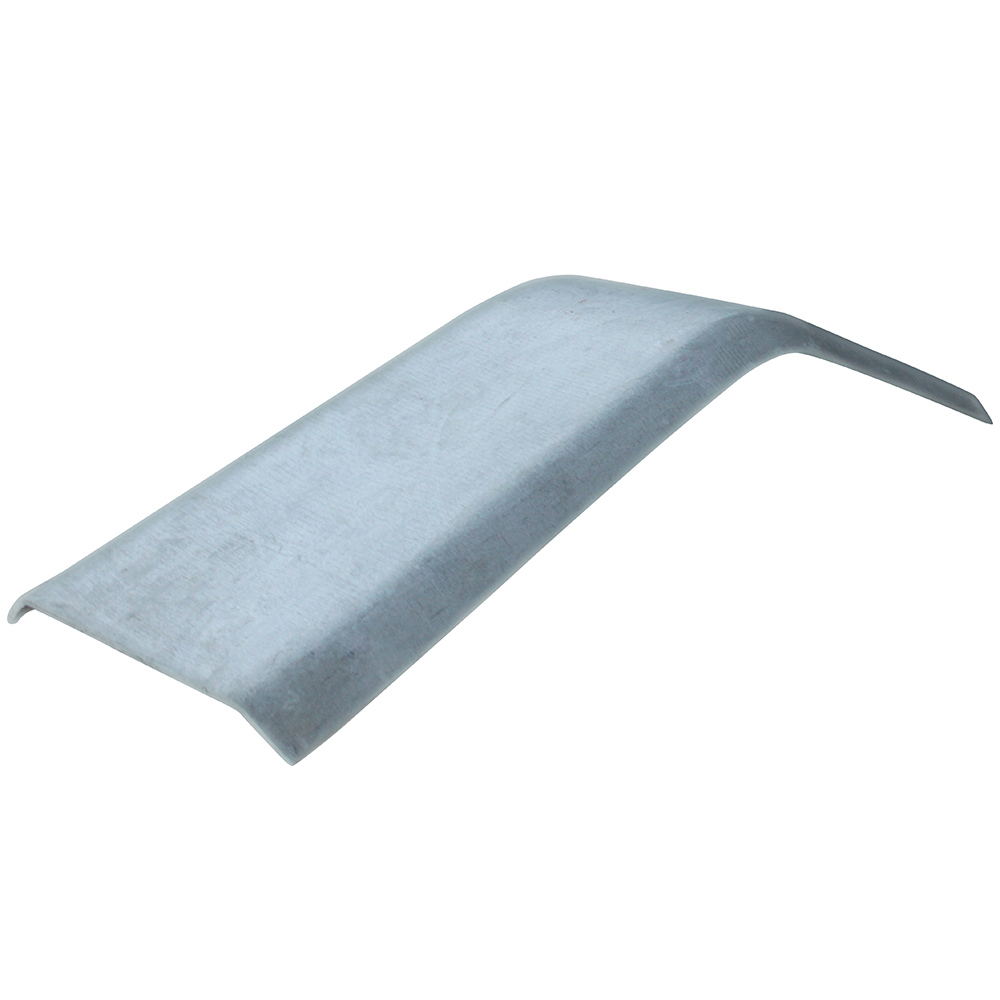

Cranked movement joint

Fixed on the ridge detail to overlap the top end detail of a straight Movement Joint.
Fixings specification is the same as straight movement joints.

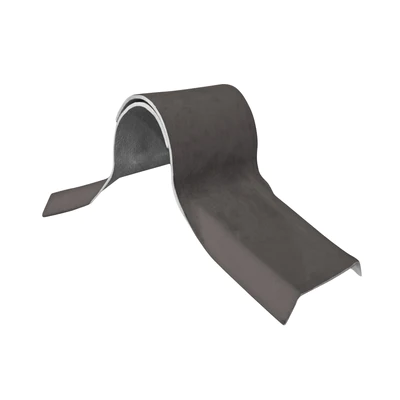

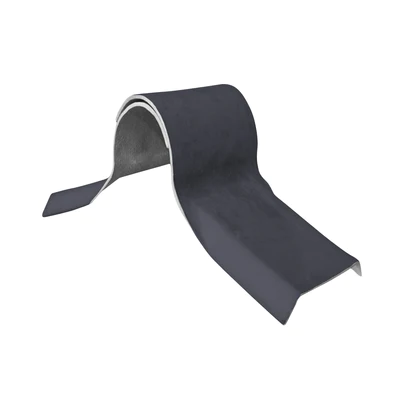

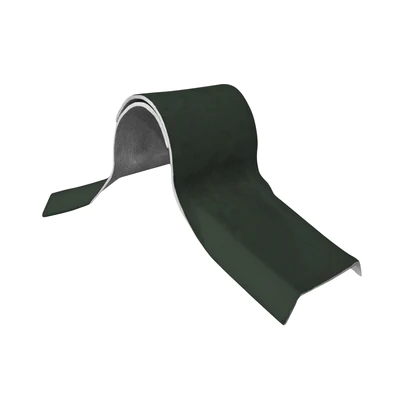

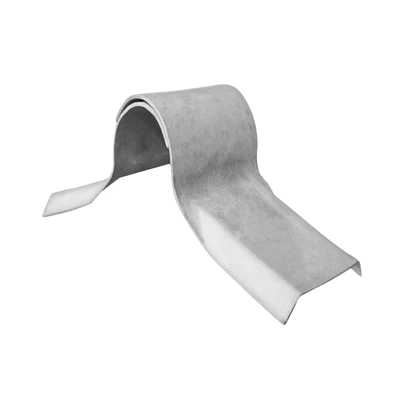

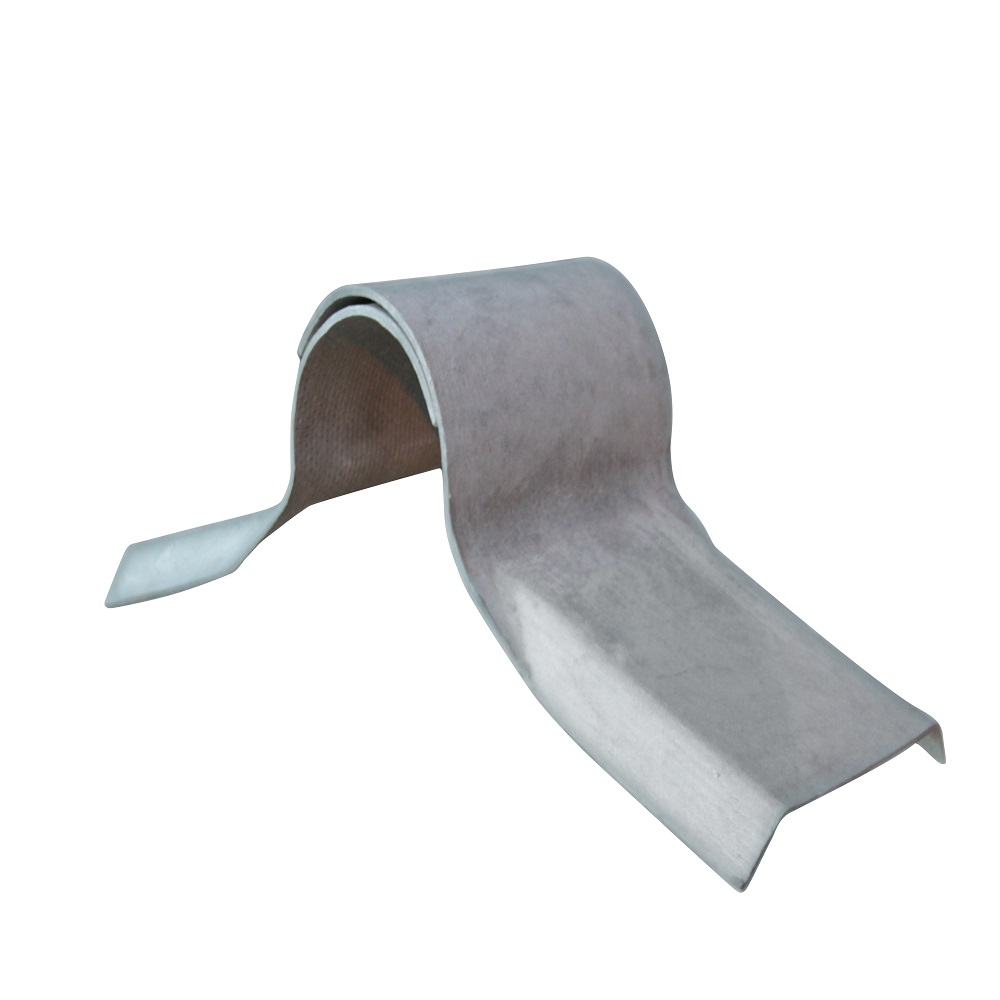

Movement Joint 2 Piece

This is a flexible 2 piece movement joint ridge section which adjusts to fit at the crown of a duo-pitch roof.

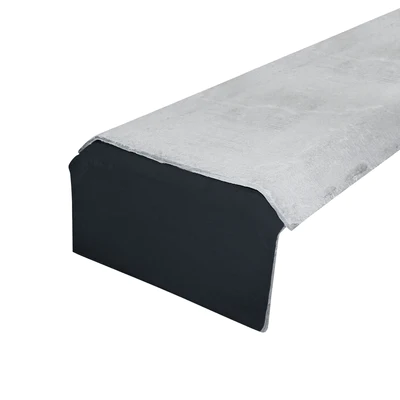

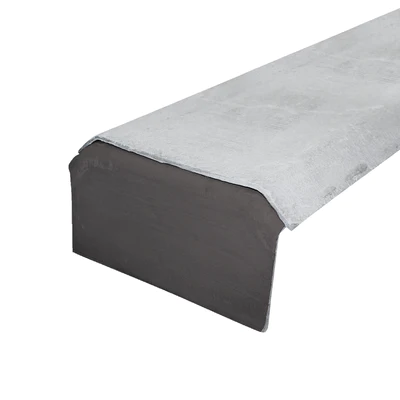

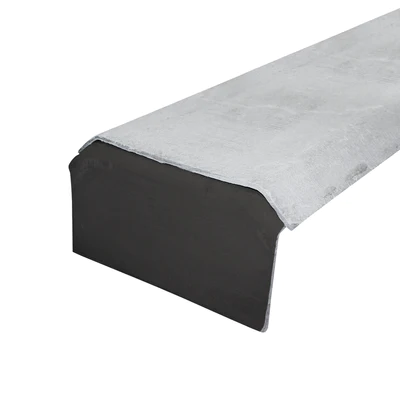

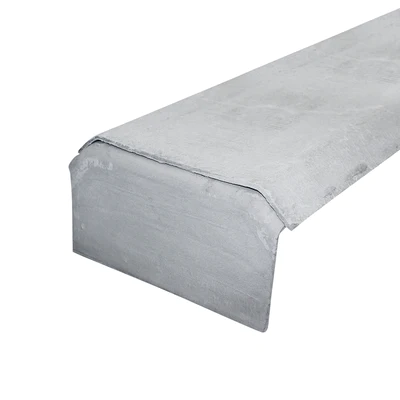

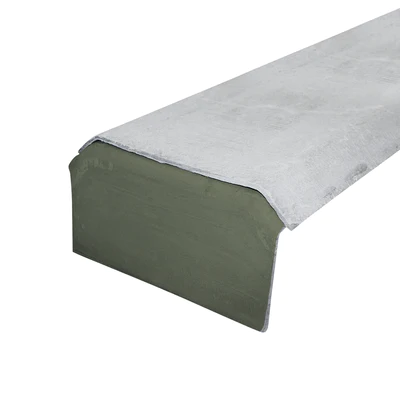

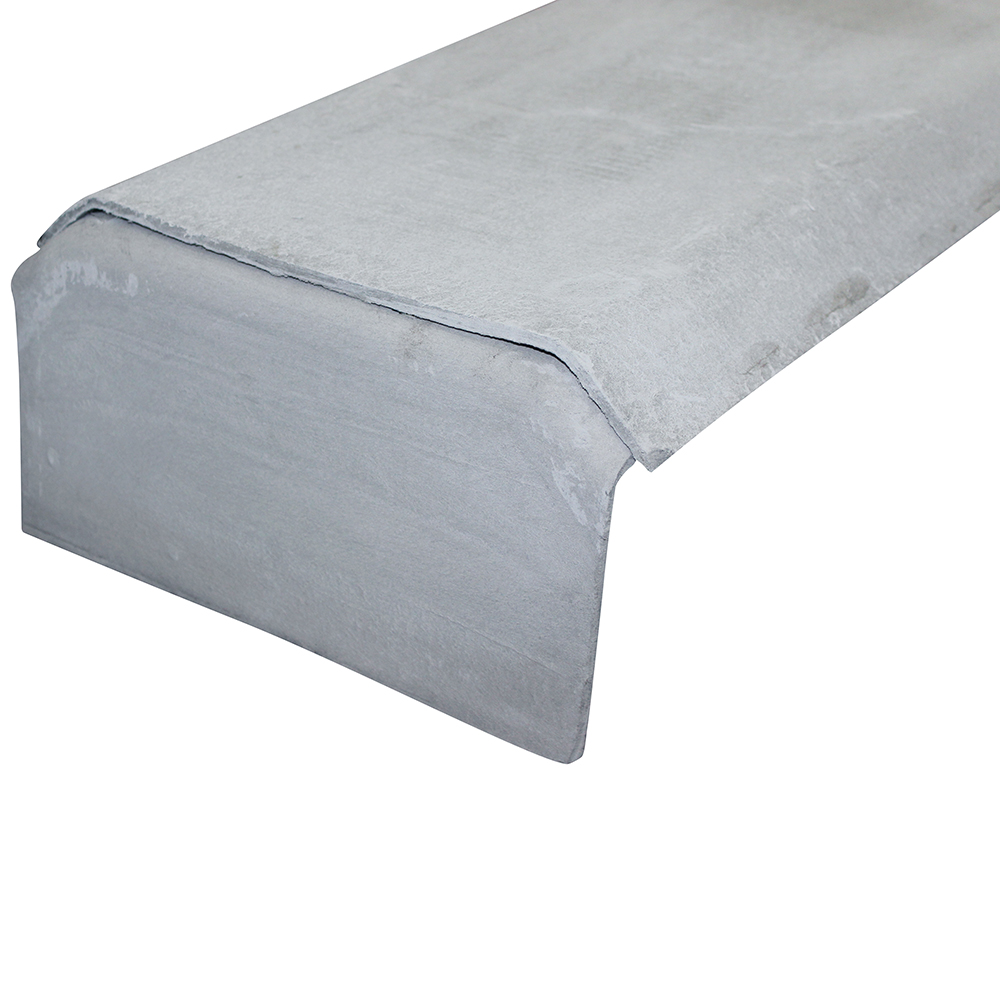

Movement joint stop end

Used to close the open end of a straight Movement Joint at the eaves.


Finials

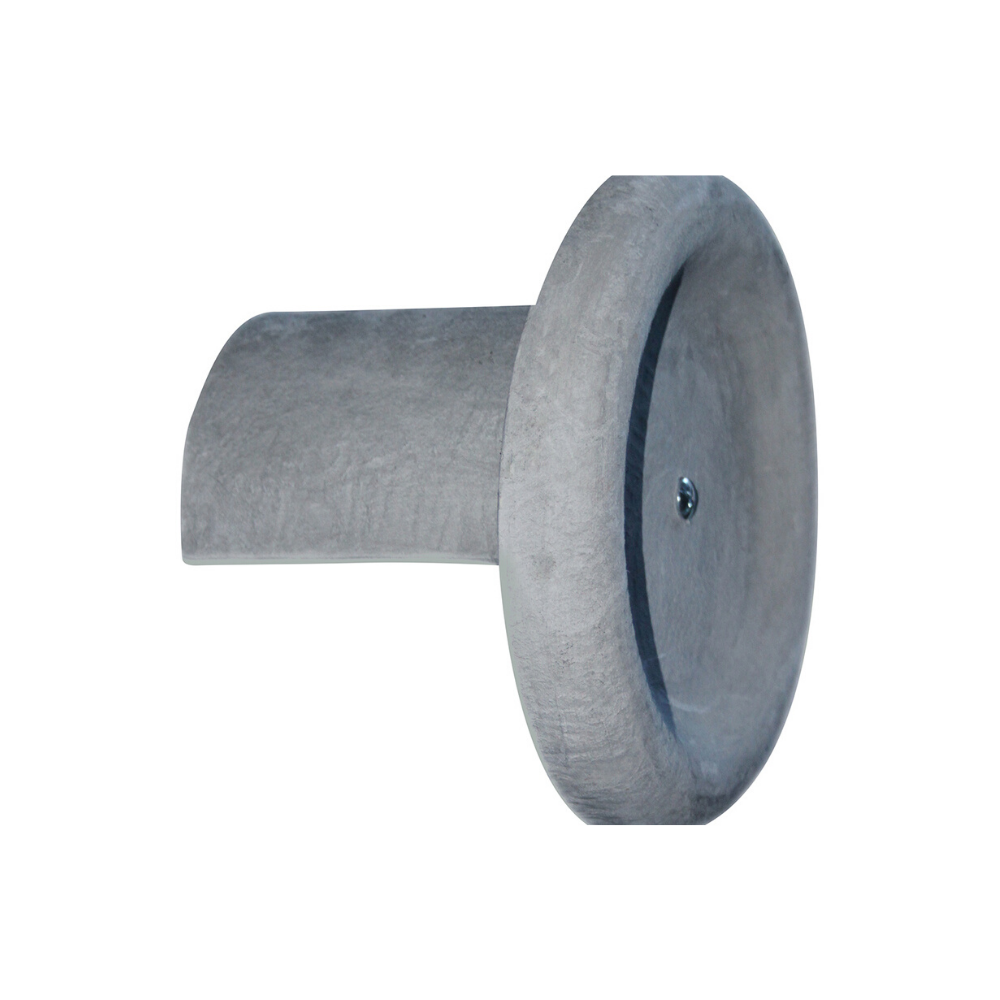

Disc

One piece Disc Finial

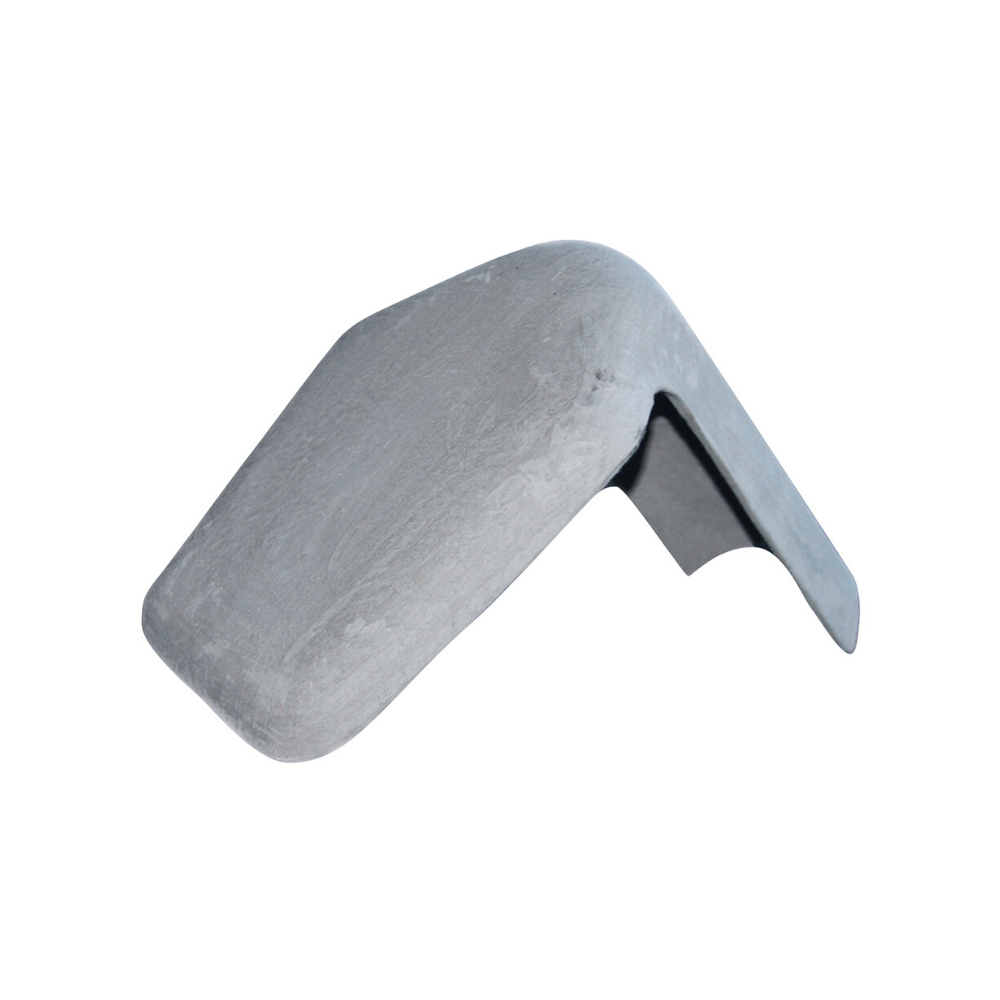

Diamond

One piece Diamond Finial


Hooded

Hooded Finials are a good option used to close the gable end for EUROSIX two piece ridge fittings.
