32/1000 Wall Profile

About 32/1000 Wall Profile

Metal profile sheets are widely used for both roofing and wall cladding, particularly across agricultural, industrial, retail and leisure buildings where durability and speed of installation are important.

One of the key advantages of metal sheeting is its design flexibility. Sheets can be installed vertically, horizontally or diagonally, allowing architects, builders and property owners to create a wide range of building styles without restricting the overall aesthetic.

Profiled metal roofing — including box profile sheets, 32/1000 forward and reverse profiles, and corrugated sheets — has been a trusted construction solution for well over a century. Their continued use is driven by several practical benefits, including long service life, strong structural performance, attractive external appearance, and improved building efficiency when combined with insulation systems.

Our 32/1000 Box Profile roof and wall sheets are now manufactured in-house, ensuring consistent quality and fast production. Nationwide delivery is available within 3–5 working days.
IMG_0503 (1)

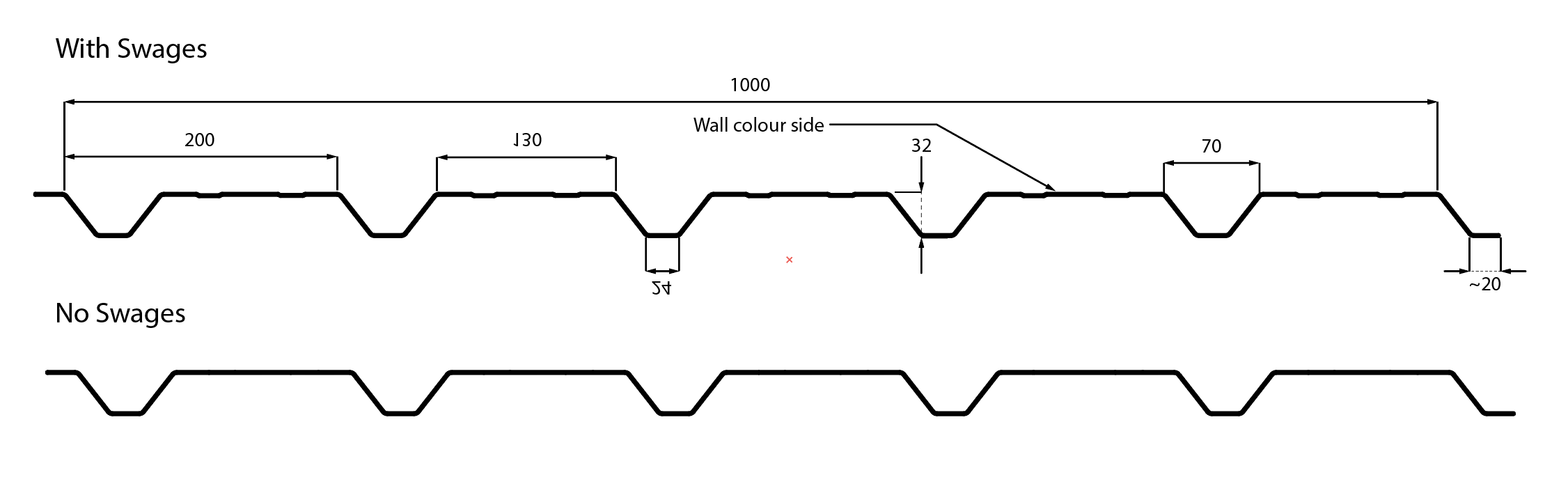

Product Dimensions

Screenshot 2026-03-20 at 15.23.26

Technical Data

Minimum length
500mm
Maximum length
8000mm
Bespoke lengths
Up to 15,000mm (upon special request)
Cover width
1000mm
Profile height
32mm
Pitch
200mm
Thickness
0.5mm / 0.7mm
Weight
0.5mm: 4.57 kg/m² | 0.7mm: 6.40 kg/m²
Fire rating
Class 1
CE Marking
BS EN 14782
Tolerances
BS EN 14782

PVC Plastisol Colours

Anthracite-4
Anthracite
Black-4
Black
Goosewing Grey-4

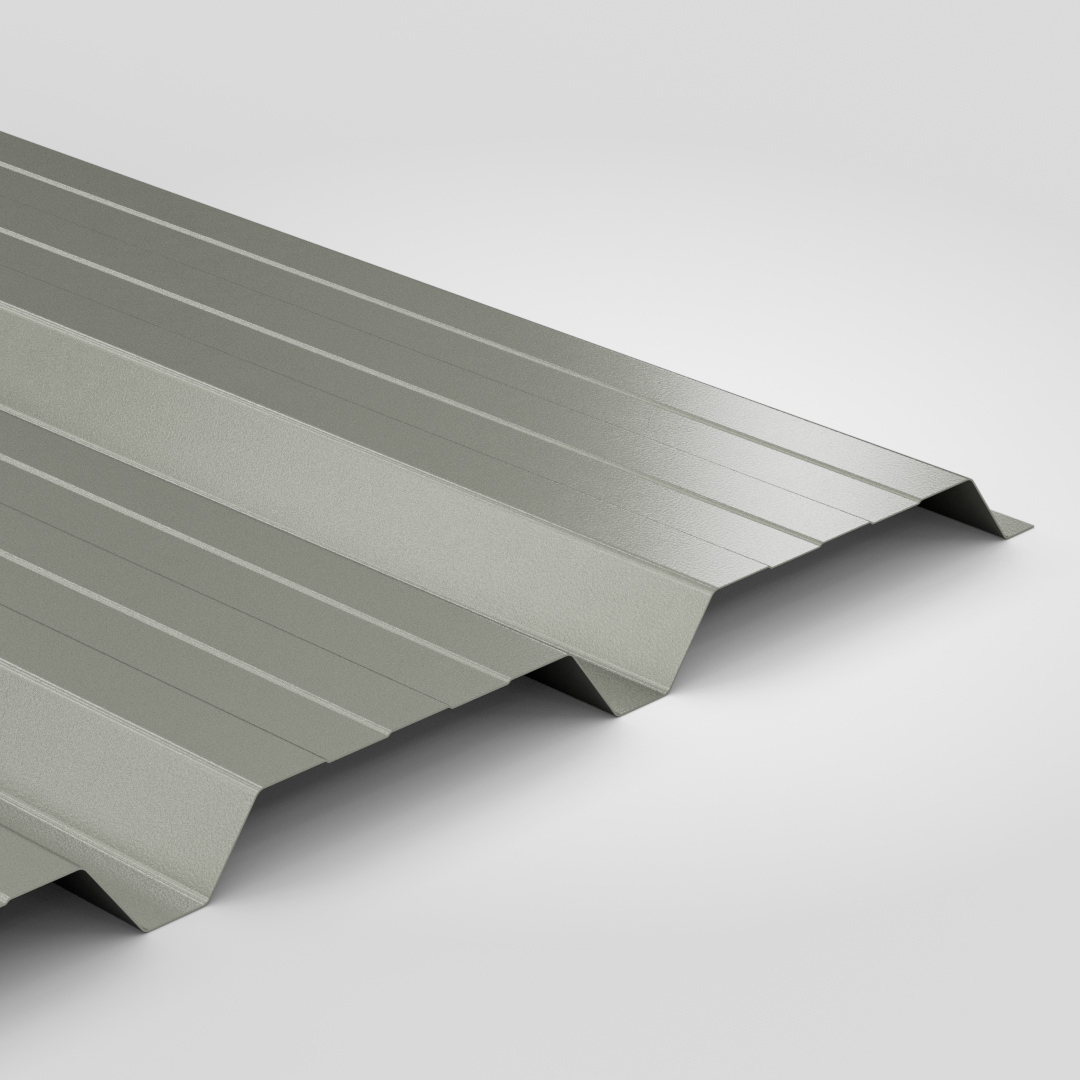

Goosewing Grey
Juniper Green-Mar-20-2026-02-49-36-3769-PM

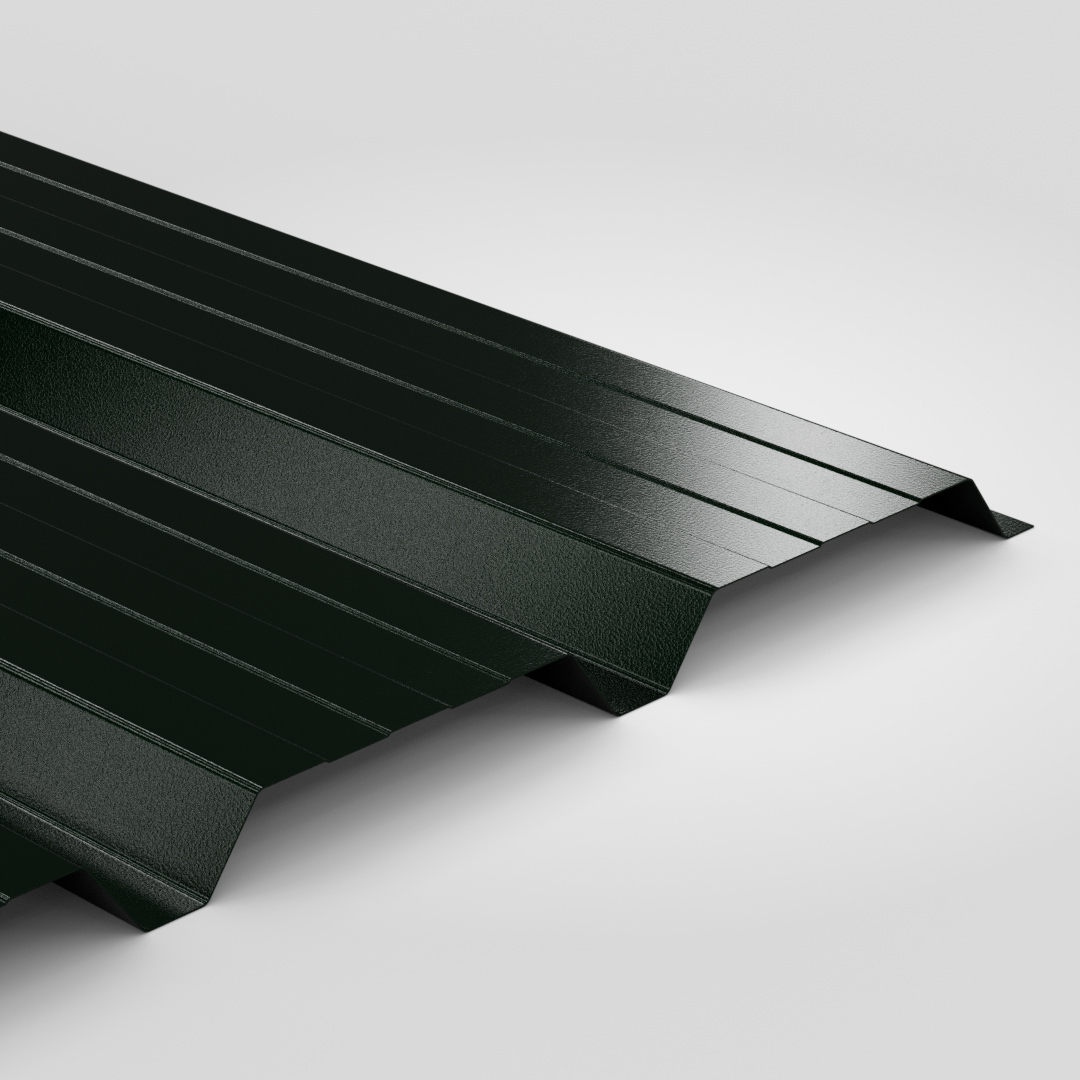

Juniper Green
Merlin Grey-2
Merlin Grey
Moorland Green-2

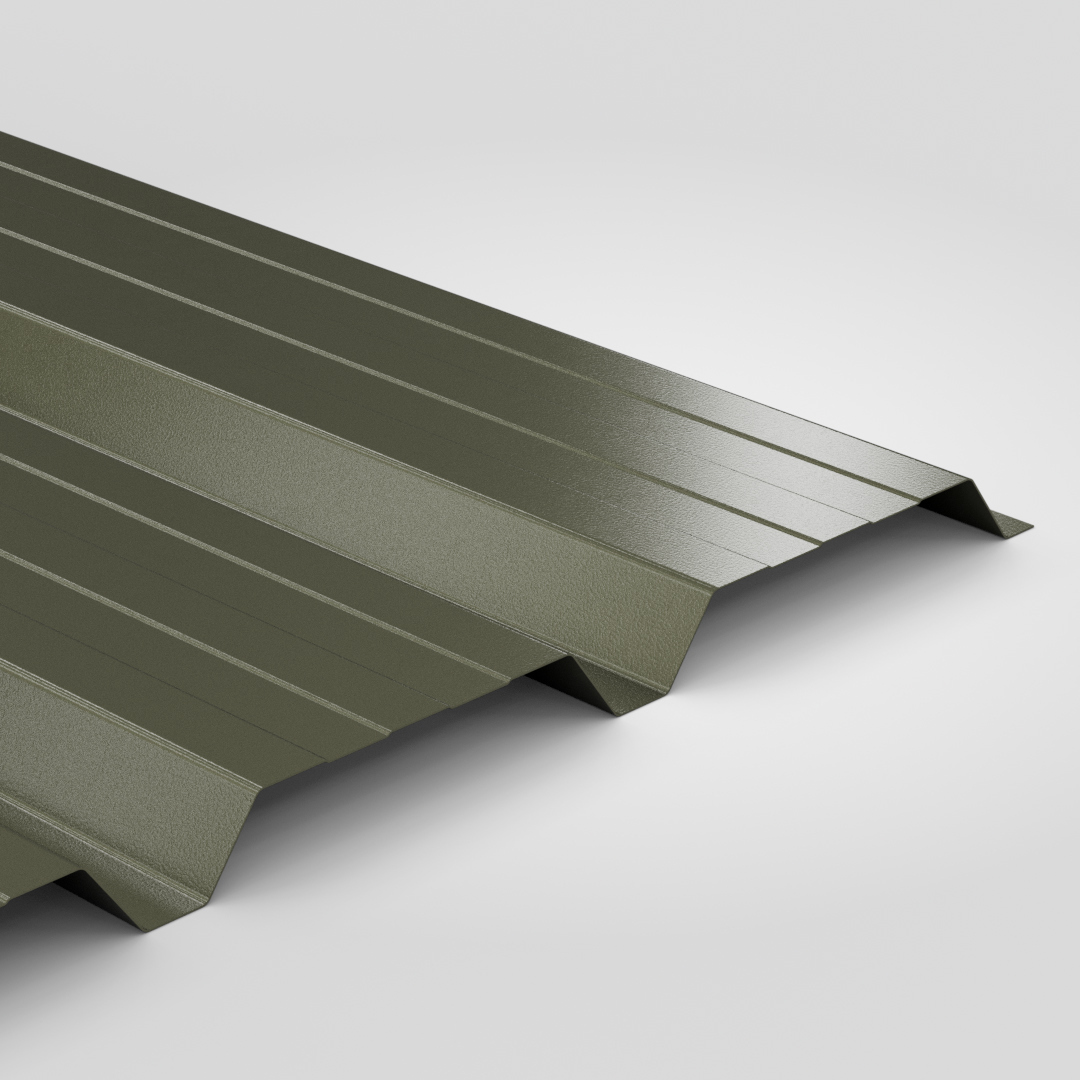

Moorland Green
Olive Green-2

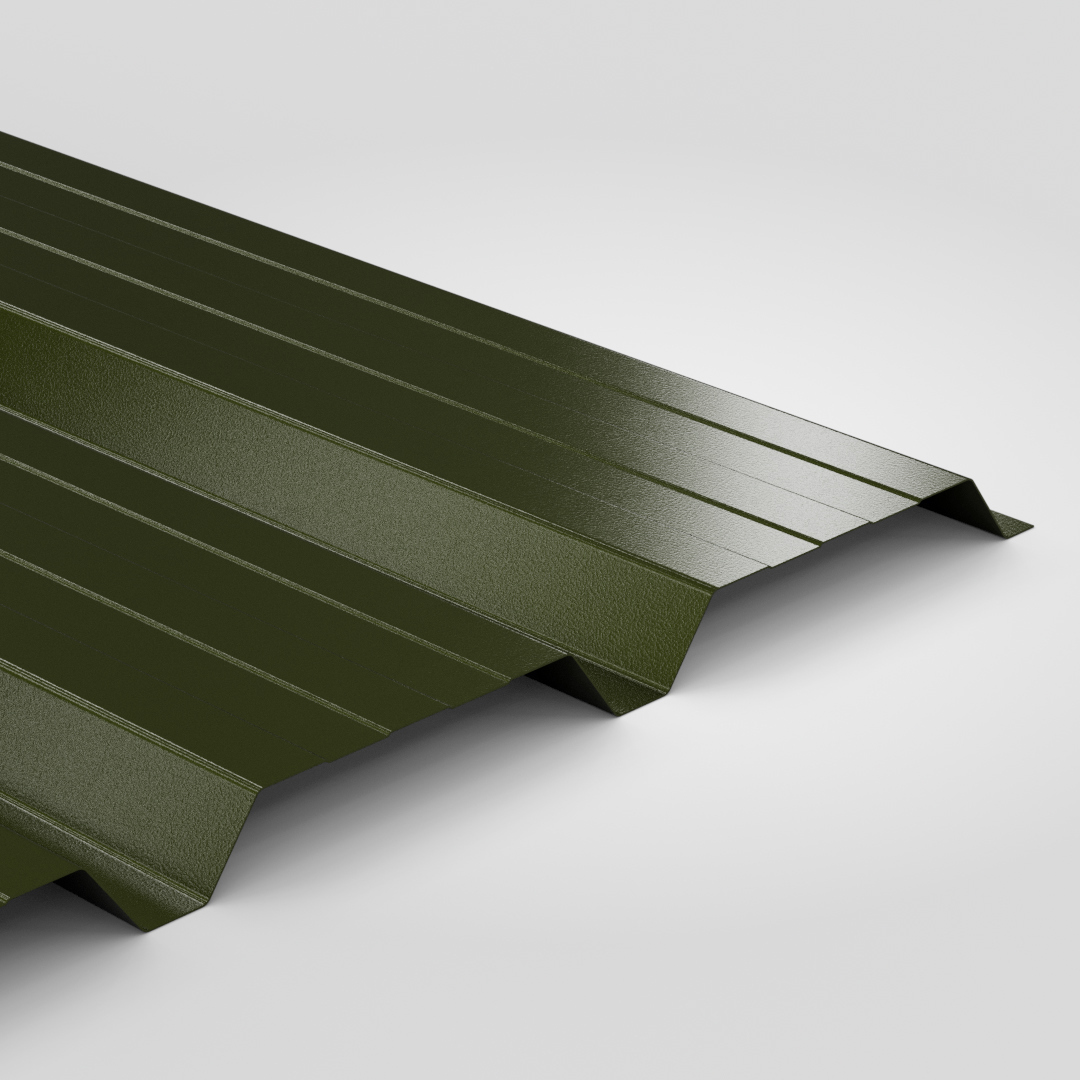

Olive Green
Slate Blue-Mar-20-2026-02-50-12-9503-PM
Slate Blue
Van Dyke Brown-2
Van Dyke Brown
White-4

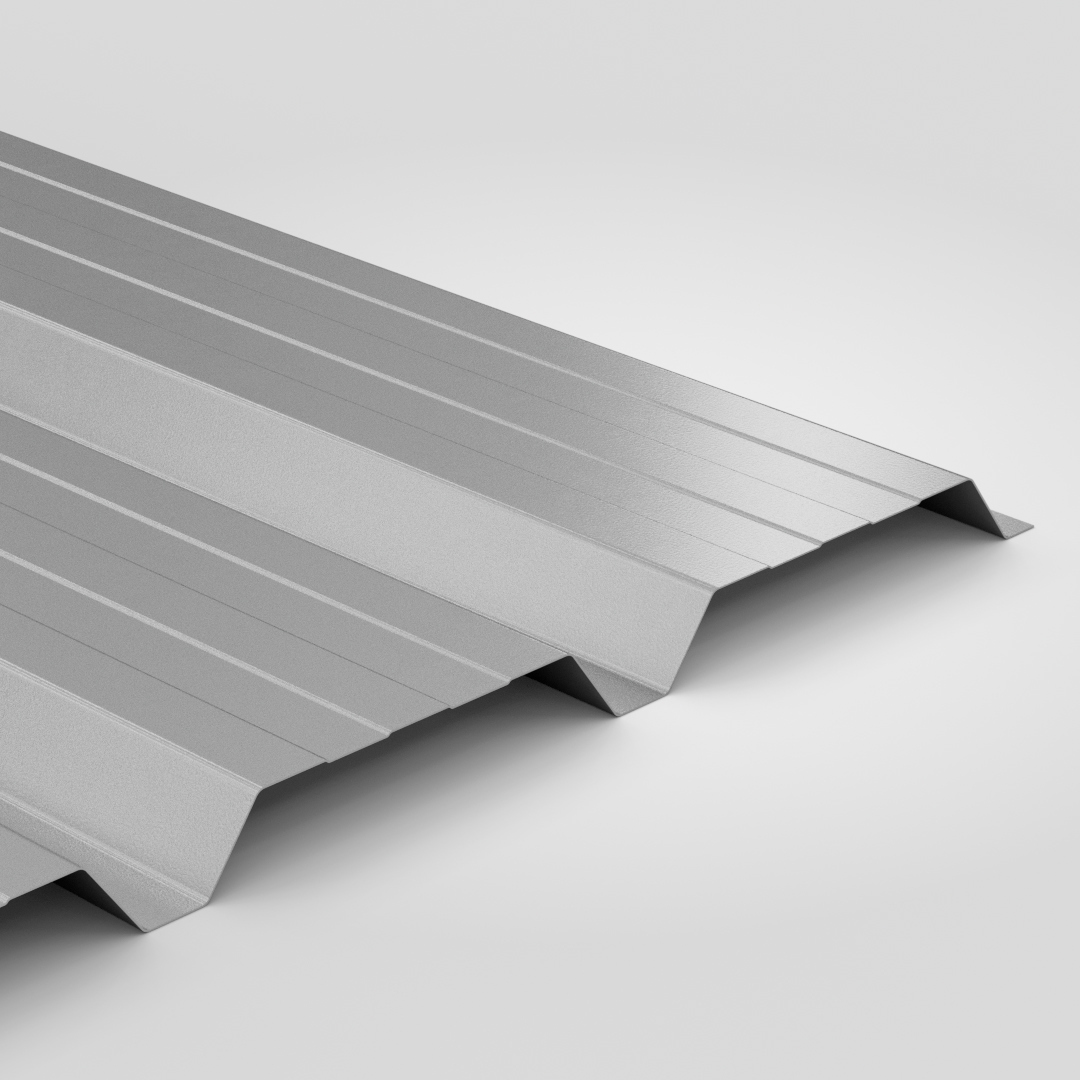

White

Resources & downloads
