Yorkshire Board Plank Profile

Yorkshire board Plank Profile

Our Yorkshire Board Plank Profile delivers the appearance of traditional timber boarding with the strength, longevity, and low maintenance of steel.

Manufactured at our Highbridge headquarters, each sheet is produced to order, ensuring consistent quality, accurate sizing, and a precise fit for your project. The woodgrain finish provides a natural aesthetic without the ongoing upkeep associated with timber, making it ideal for agricultural, commercial, and residential applications.

Designed for both vertical wall cladding and low-pitch roofing applications (minimum 5°), this profile combines visual appeal with practical performance.

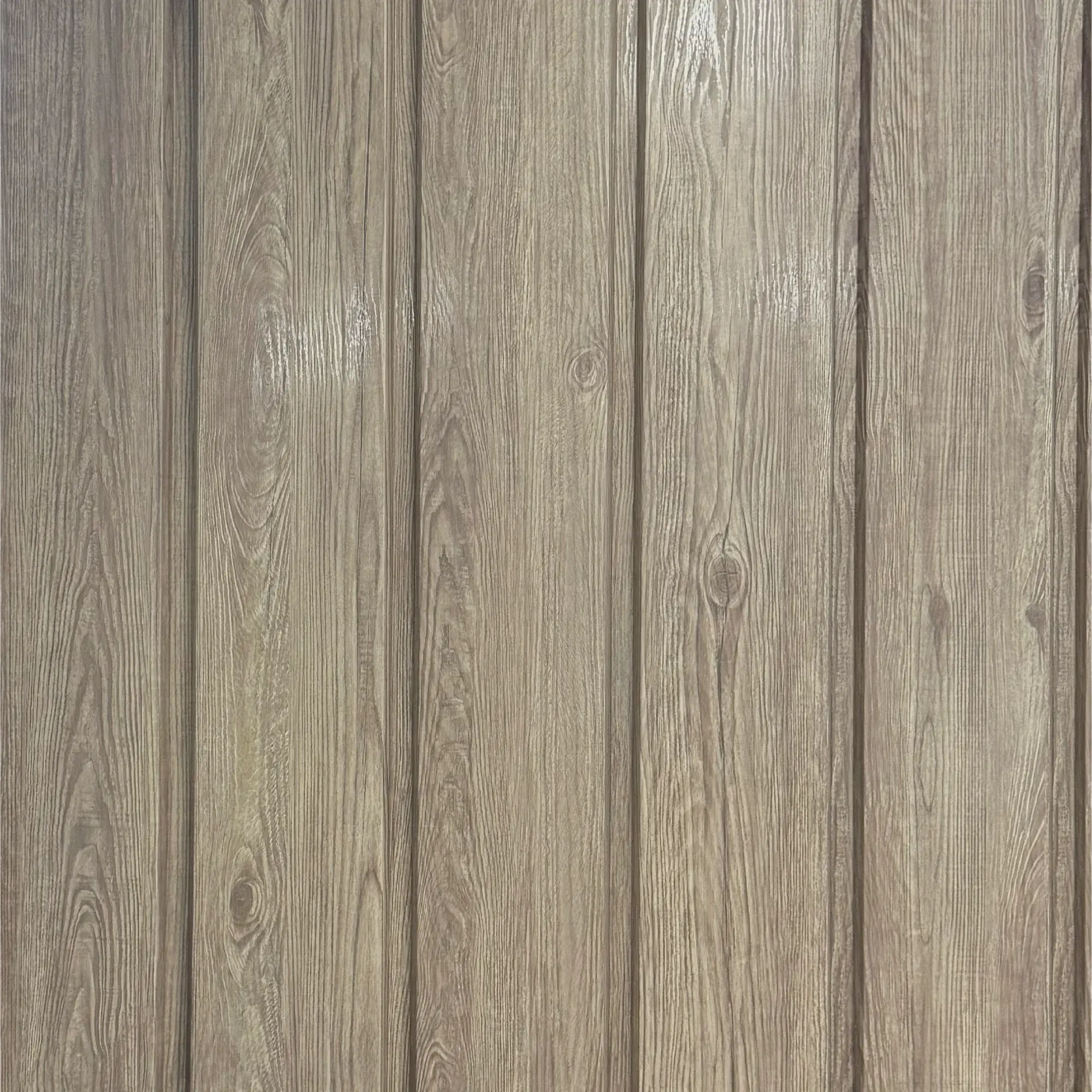

Ash_4x_ebdd6ffa-bbbf-4117-a93f-35dcf743bf4a

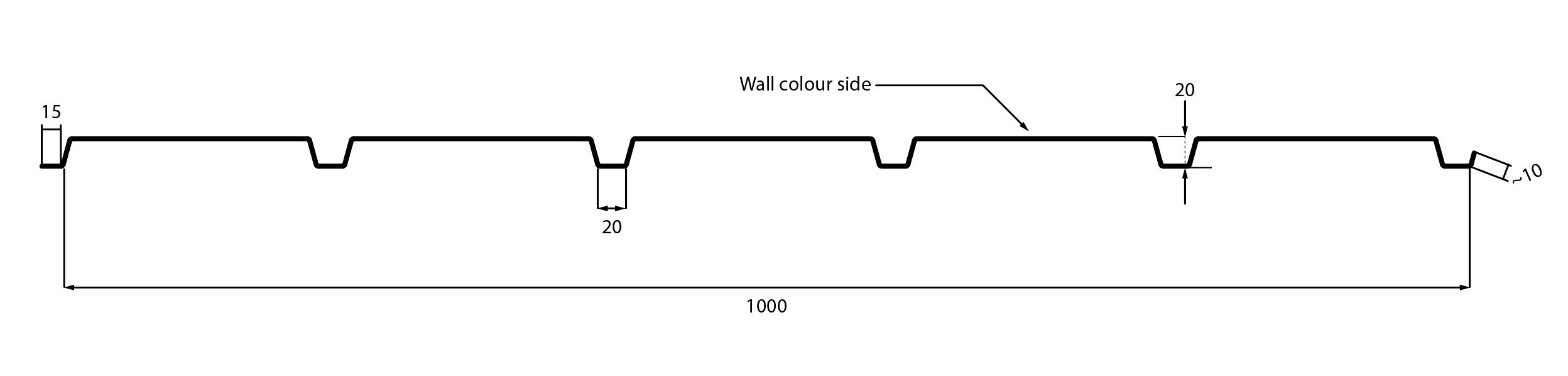

Product Dimensions

Screenshot 2026-03-20 at 15.31.15

Technical Data

Minimum length
500mm
Maximum length
8000mm
Bespoke lengths
Up to 15,000mm (upon special request)
Cover width
1000mm
Profile height
20mm
Pitch
200mm
Thickness
0.5mm
Weight
0.5mm: 4.57 kg/m²
Fire rating
Class 1
CE Marking
BS EN 14782
Tolerances
BS EN 14782

Woodgrain Finishes

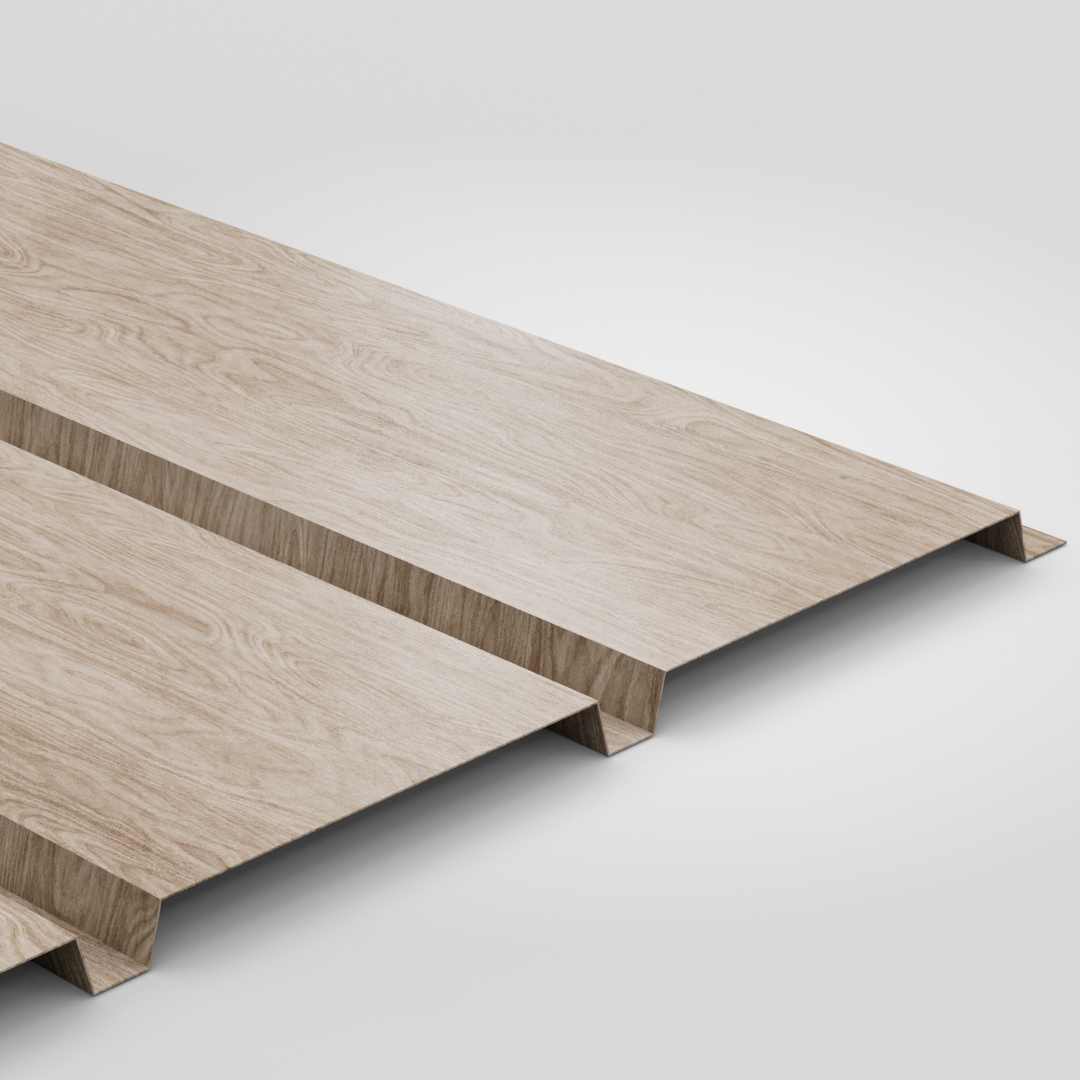

Ash-3
Ash

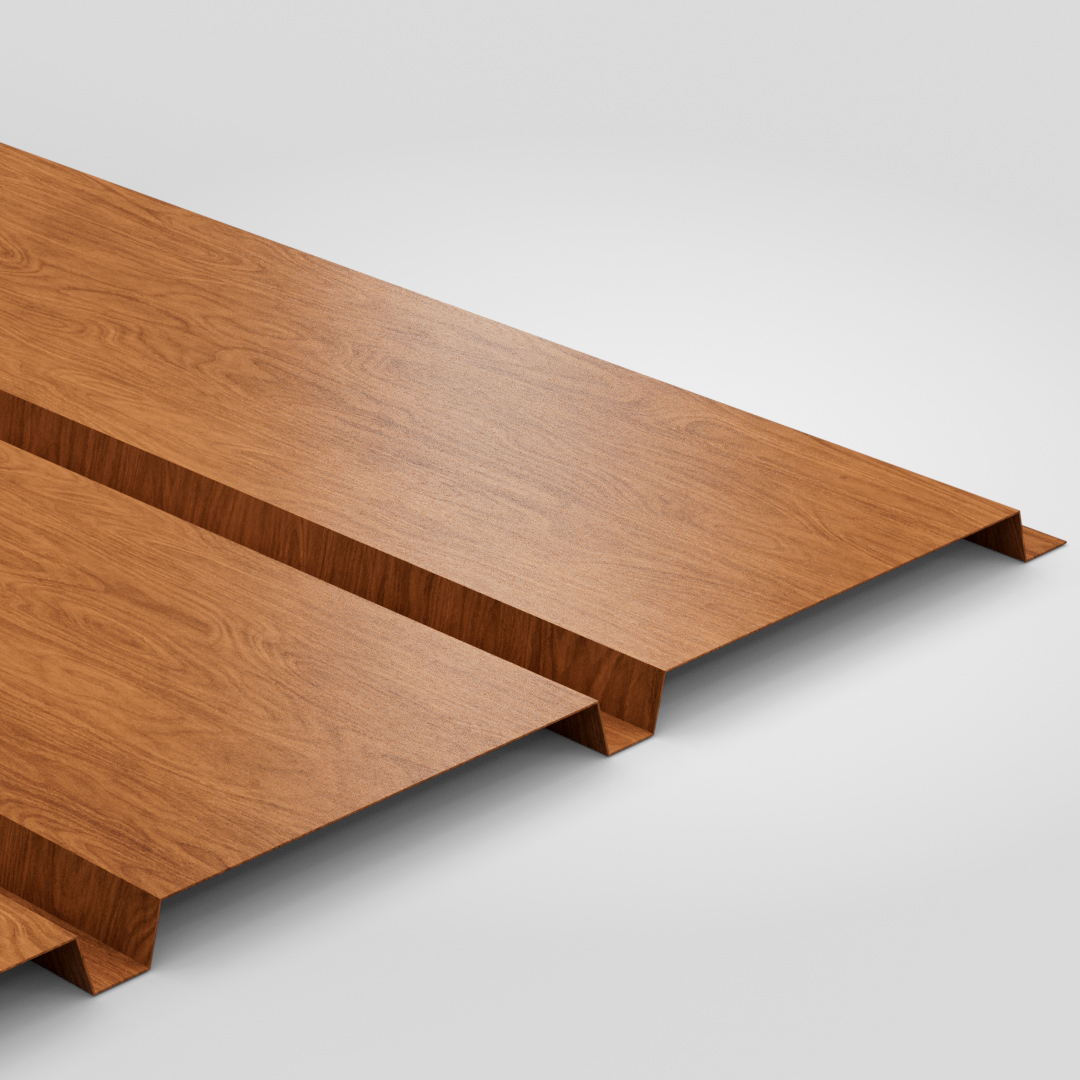

Natural
Natural

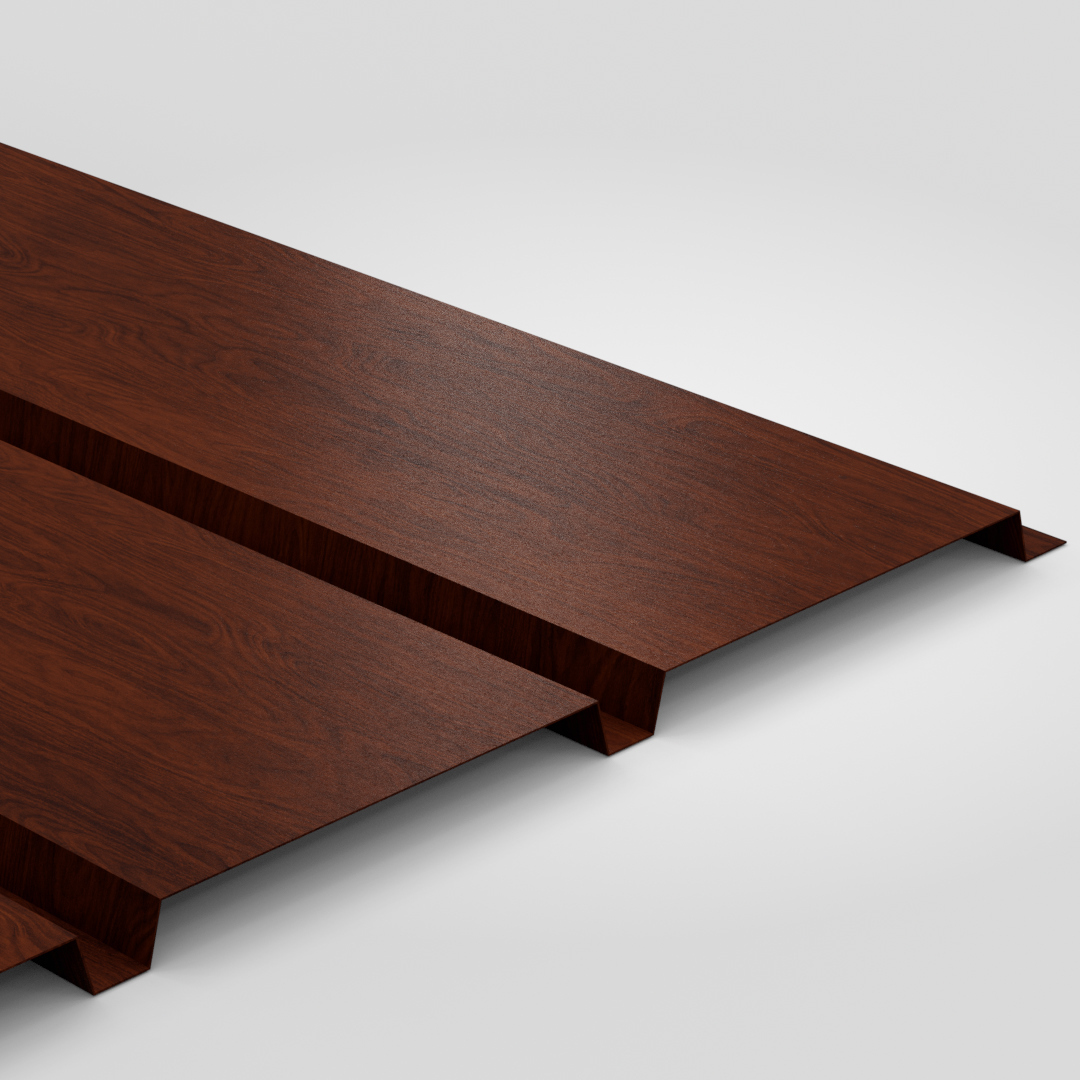

Walnut-1
Natural
