13/3 Corrugated Profile

About 13/3 Corrugated Profile

Corrugated metal sheets are widely used for both roofing and wall cladding, particularly across agricultural, industrial and storage buildings where durability, simplicity and fast installation are key.

One of the main advantages of corrugated sheeting is its strength-to-weight ratio and versatility. The classic corrugated shape provides excellent rigidity while keeping the sheet lightweight, making it suitable for a wide range of applications including barns, workshops, sheds and commercial buildings.

The 13/3 corrugated profile is one of the most recognised metal sheet profiles in construction. Its traditional corrugated form has been used for well over a century thanks to its reliability, ease of installation and timeless appearance. Corrugated sheets offer long service life, dependable weather protection and a clean, functional finish for both roof and wall applications.

Our 13/3 Corrugated Profile sheets are now manufactured in-house, ensuring consistent quality and reliable supply. Nationwide delivery is available within 3–5 working days.

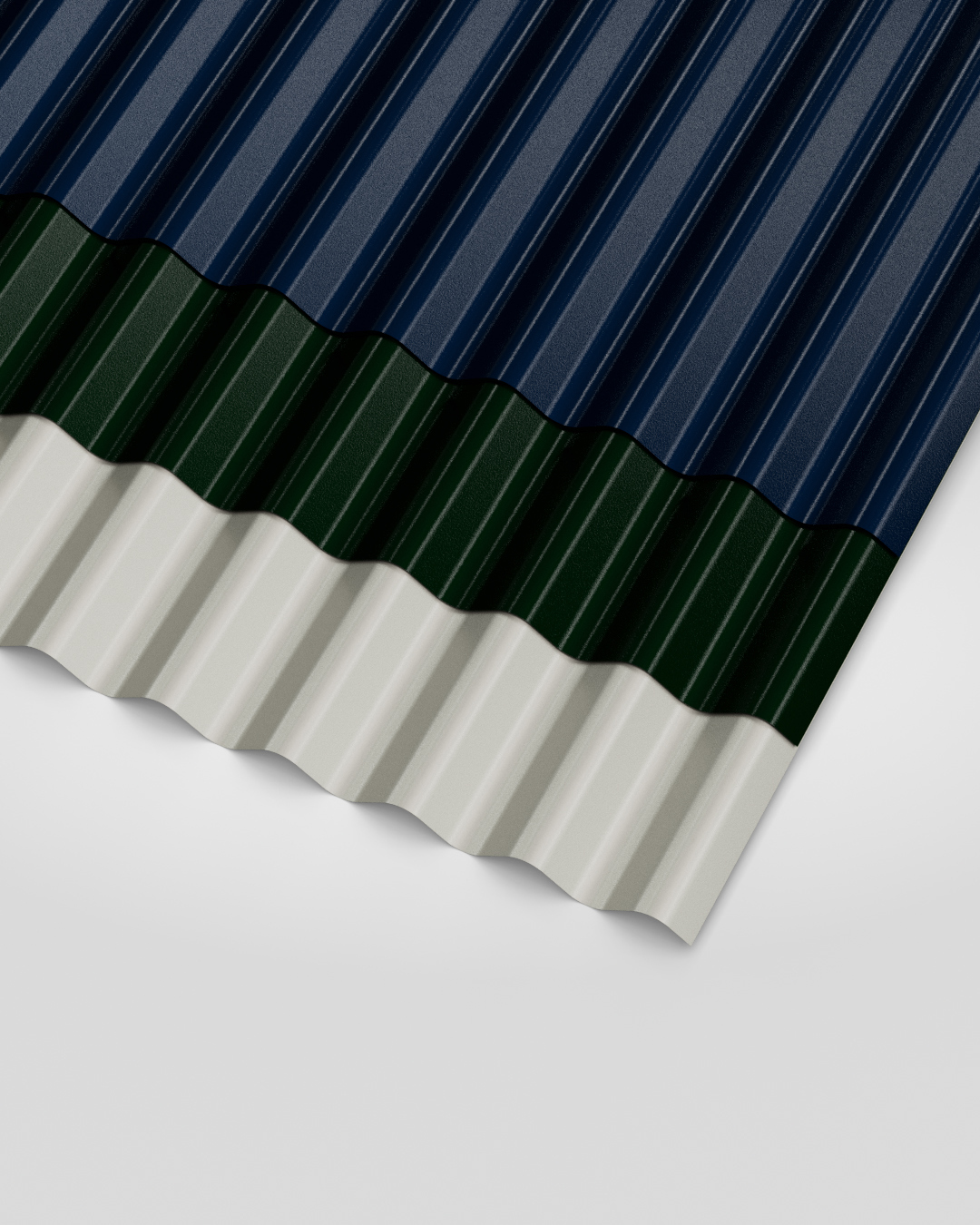

13-3 Corrugated

Product Dimensions

Screenshot 2026-03-13 at 18.20.08

Technical Data

Minimum length
500mm
Maximum length
8000mm
Bespoke lengths
Up to 15,000mm (upon special request)
Cover width
988mm
Pitch
76mm
Profile height
18mm
Thickness
0.5mm / 0.7mm
Weight
0.5mm: 4.57 kg/m² | 0.7mm: 6.40 kg/m²
Fire rating
Class 1
CE Marking
BS EN 14782
Tolerances
BS EN 14782

PVC Plastisol Colours

Anthracite-Mar-20-2026-03-09-52-2795-PM
Anthracite

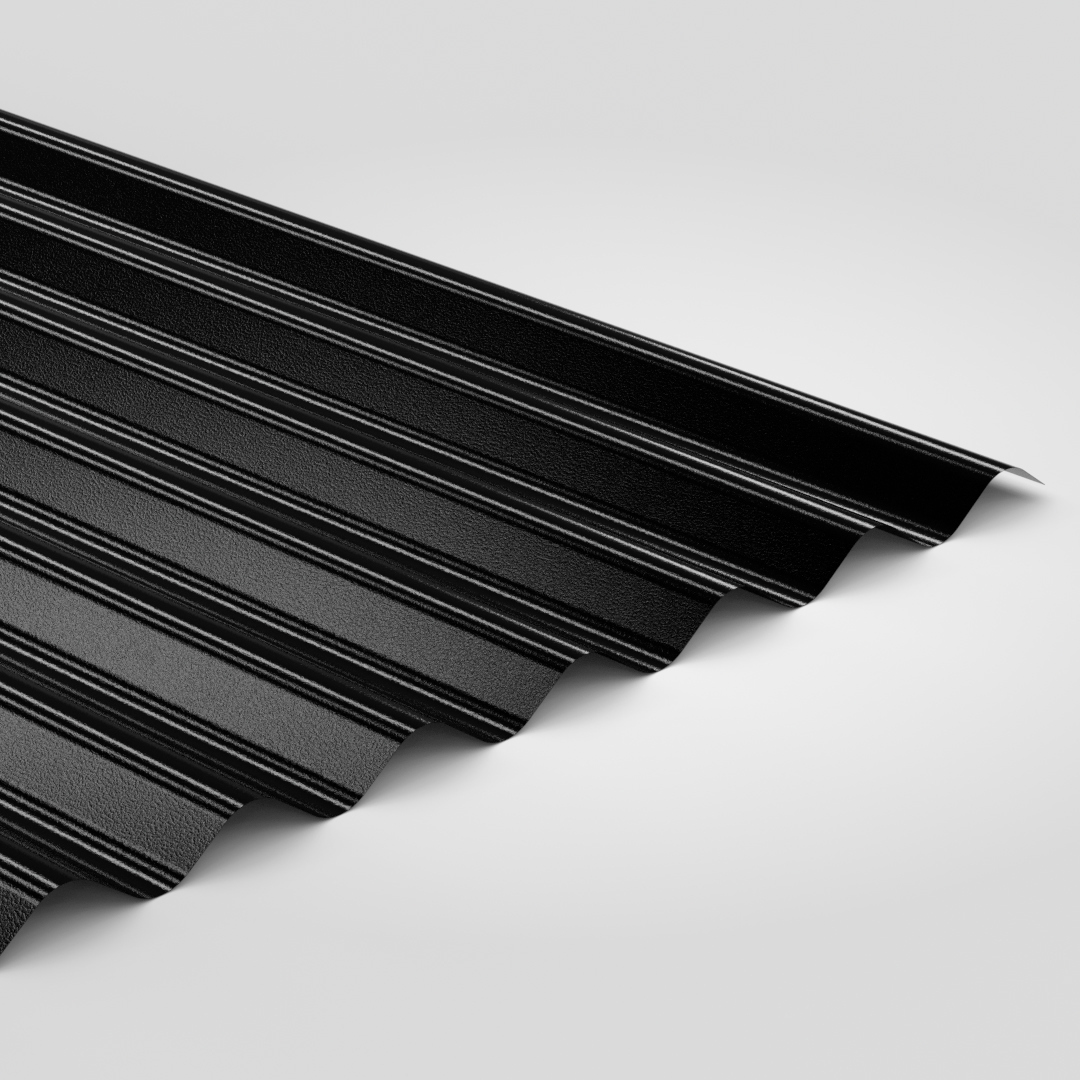

Black-Mar-20-2026-03-09-56-6270-PM
Black

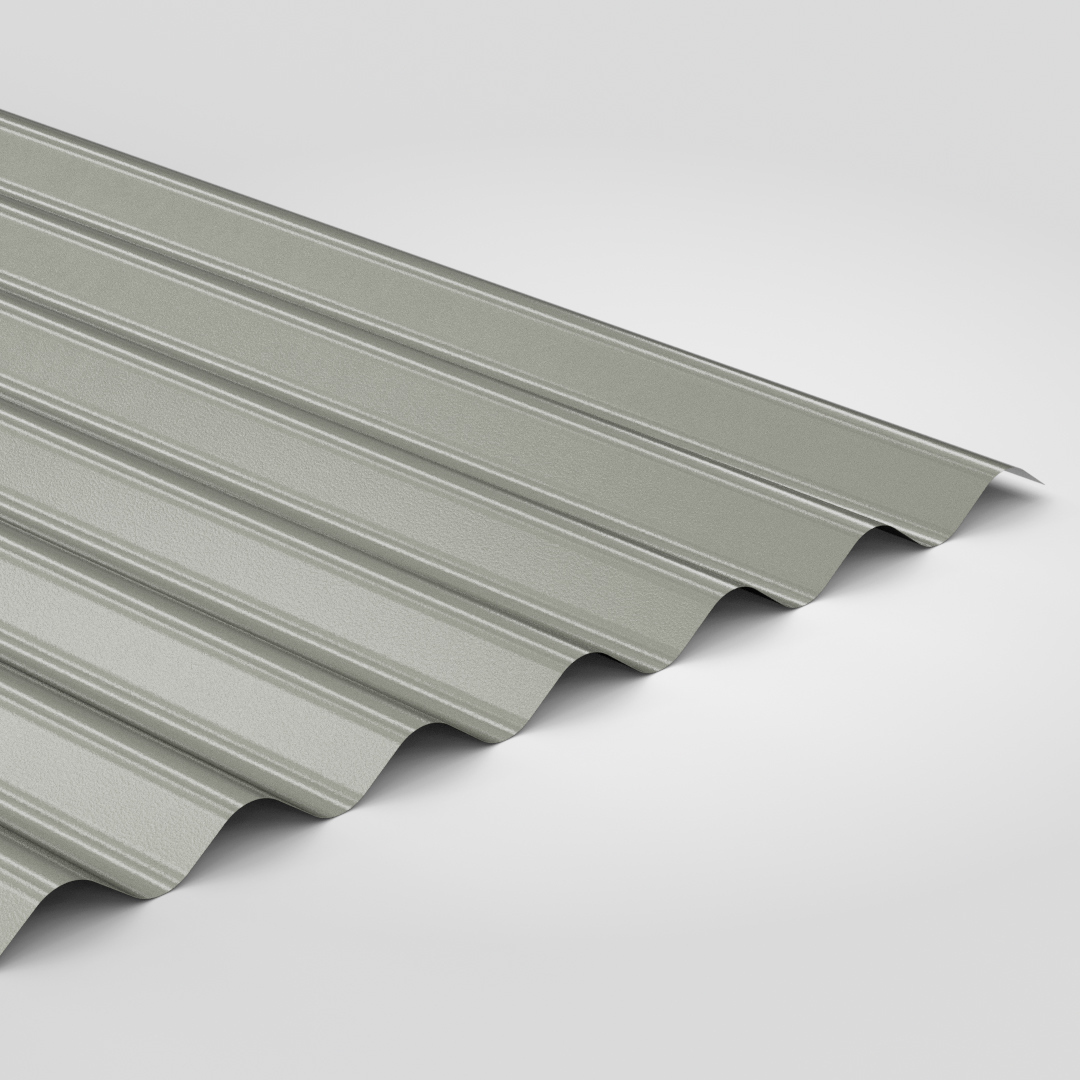

Goosewing Grey-Mar-20-2026-03-10-01-2560-PM
Goosewing Grey
Juniper Green-Mar-20-2026-03-10-06-1068-PM
Juniper Green

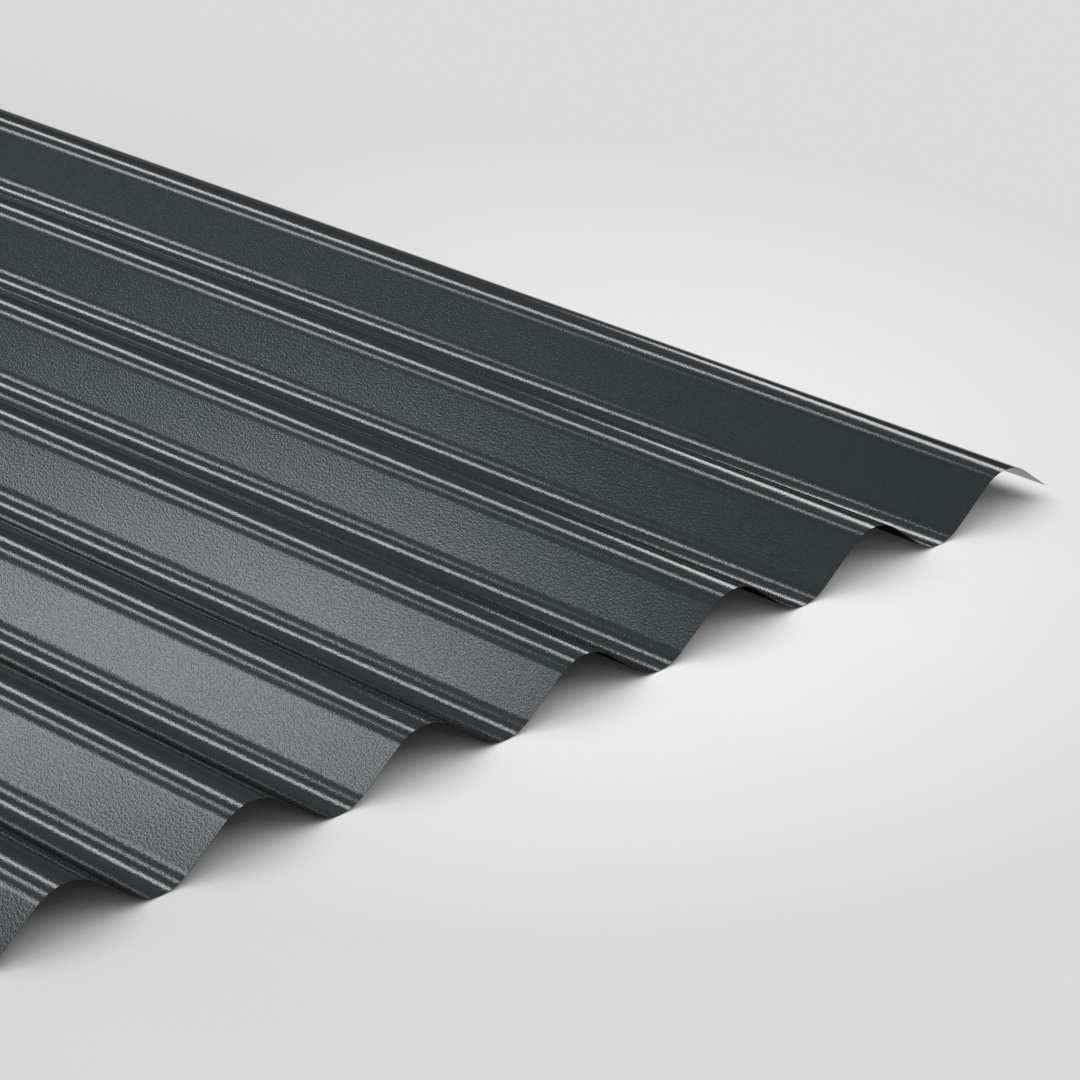

Merlin Grey-3
Merlin Grey
Moorland Green-3
Moorland Green
Olive Green-3
Olive Green
Slate Blue-Mar-20-2026-03-10-23-6903-PM
Slate Blue
Van Dyke Brown-3
Van Dyke Brown

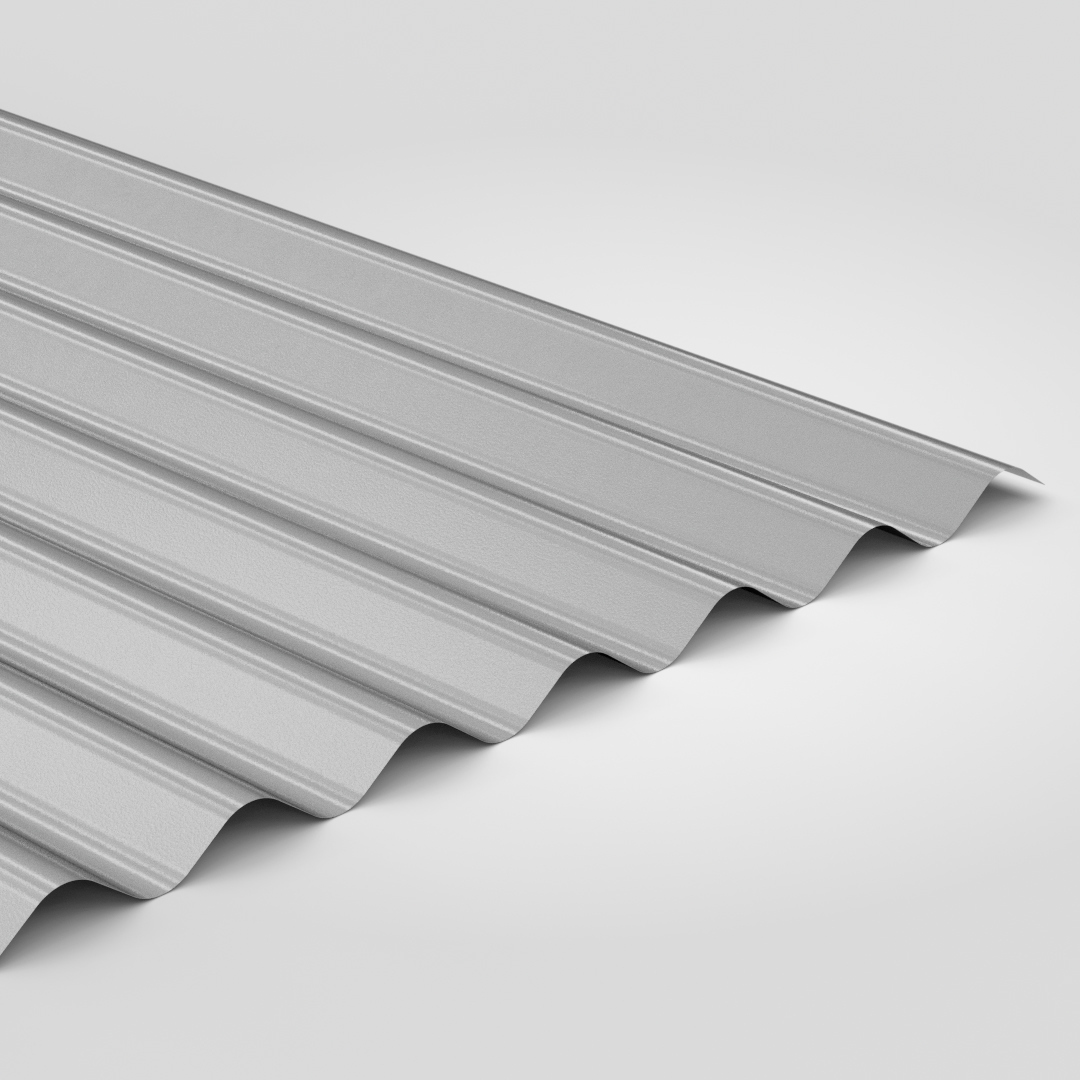

White-Mar-20-2026-03-10-32-8472-PM
White
